ANTENTOP- 02- 2003, # 003

Jagadis Chandra Bose

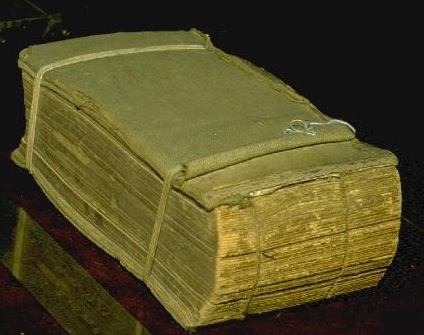

Figure 10. One of Bose's polarizers was a cut-off metal plate grating, consisting of a book (Bradshaw's Railway Timetable) with sheets of tinfoil interleaved in the pages.

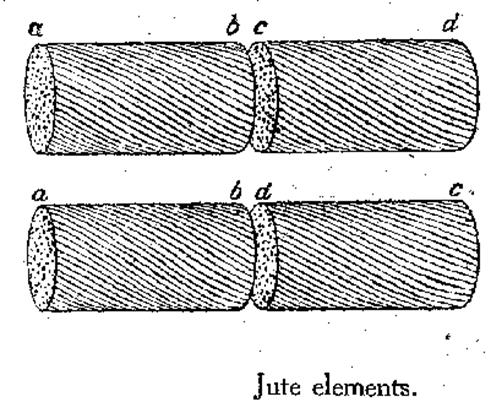

Figure 11. Bose's diagram of twisted-Jute polarization elements, used to simulate macroscopically the polarization effect of a certain sugar solutions.



.

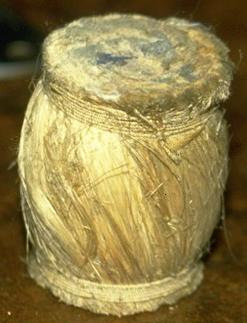

Figure 12. One of the twisted-jute polarizers used by Bose.

THE DOUBLE-PRISM ATTENUATOR



Bose's investigations included measurement of refractive index of a variety of substances. He made dielectric lenses and prisms; examples are visible in Figures 11 and 12.



One investigation involved measurement of total internal reflection inside a dielectric prism, and the effect of a small air gap between two identical prisms. When the prisms are widely separated, total internal reflection takes place and the incident radiation is reflected inside the dielectric. When the 2 prisms





www.antentop.org

Page 94
