Special page devoted to

Two Wires Beverage Antenna

Custom Search



ANTENTOP- 01- 2017 # 021

Two Wires Beverage Antenna





Antenna was tested in the Air and showed very good result. The antenna was compared with fence Beverage Antenna described in the Reference 3, 4. Two Wires Beverage Antenna gives over 2 units on the S- Meter of ICOM- 7410 on 160 and 80 meters, 2- 1.5 units on 60, 40 and 30 meter, and near 1 unit on 15, 17 and 10 meter. Two Wires Beverage Antenna could receive ham station from NA, SA and Europe and Asia from 160- to 10 meter. I tested the antenna in CQ DX TEST with satisfied result.  The antenna is grounded from both ends that makes it safety in lighting time and effectively drain atmospheric static to the ground.  Figure 13 shows the Two Wires Beverage Antenna on my backyard.



73! VA3ZNW



References



1.     Memorandum on the Beverage Wave Antenna

http://www.antentop.org/library/shelf_memorandum.htm



2. G. Z. Aizenberg and others. HF Antennas.- Radio and Svyaz, Moscow,1985



3. Modified Beverage Antenna

 http://www.antentop.org/020/VA3ZNW_020.htm



4. Universal Beverage Antenna

http://www.antentop.org/019/va3znw_019.htm

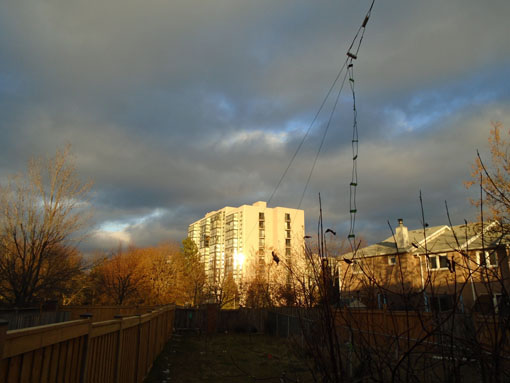

Figure 13

Two Wires Beverage Antenna on my Backyard
