ANTENTOP- 01- 2017 # 021

Two Wires Beverage Antenna

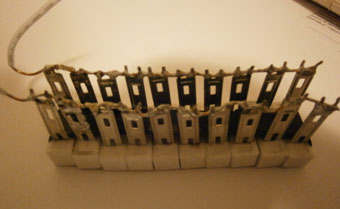

Figure 10

450 Ohm load made from 10 each Resistor in  4k7





Table 1 shows SWR of the Two Wires Beverage Antenna. Measurement made by SWR meter JANA HJ 8017A, RF power going to antenna was 100 W. The SWR meter was tested by me with several loads (25, 50, 75 and 100- Ohms) and shows best data compare to others ones SWR devices that I have. The SWR meter was connected between transmitter and coaxial cable going to the Beverage Antenna. I also did measurement of the SWR of the antenna with help of antenna analyzer MFJ- 259B. The device helped me to tune the antenna but final SWR was measured with help OF usual SWR meter.

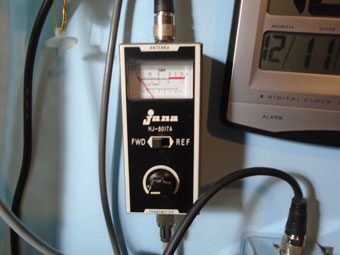

Figure 12 SWR meter JANA HJ 8017A.





Figure 11A

9:1 Transformer and 50 Ohm Load at the Antenna End

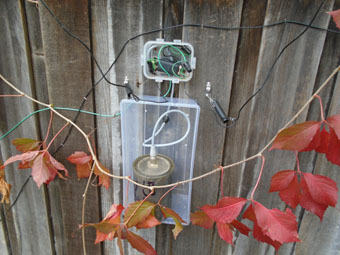

Figure 11B

9:1 Transformer and 50 Ohm Load at the Antenna End



MFJ showed different data in different time of the day because the device analyzed both signals going to the antenna from the MFJ device for measurement and stray RF received by the antenna (that signals have different level in on the day that depends on the propagation of the radio waves). Figure 12 shows SWR meter JANA HJ 8017A.



Table 1

SWR of the Two Wires Beverage Antenna. Termination Load is 50 Ohm connected through 9:1 transformer. Length of the 50- Ohm Coaxial Cable to antenna transformer is 50 feet.  Measurement made by SWR meter JANA HJ 8017A. Power going to antenna is 100 W.



Band

160

80

60

40

30

20

17

15

12

10

SWR

1.1

1.3

1.1

1.3

1.1

1.5

1.8

2.1

2.1

2.5







www.antentop.org

Page- 51
