ANTENTOP- 01- 2018 # 022

The Inverted L Ham Antenna





It is connected through an insulator to the top of the telephone pole for mechanical strength and then bonded to the top of the copper tubing. The other end is tied through an insulator to a tree some 40 feet away. The Photo 1 and Photo 2 show how the tubing is mounted on the pole and connected to the matching network.



It is connected through an insulator to the top of the telephone pole for mechanical strength and then bonded to the top of the copper tubing. The other end is tied through an insulator to a tree some 40 feet away. The photographs show how the tubing is mounted on the pole and connected to the matching network.



A

B



C

Figure 1

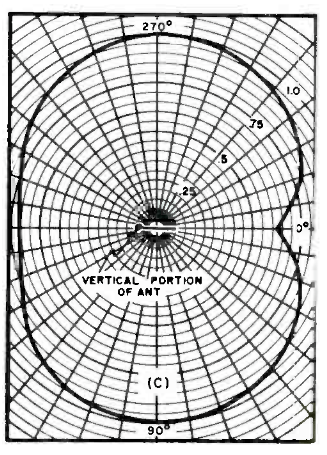

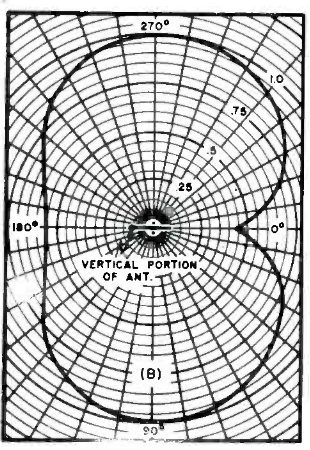

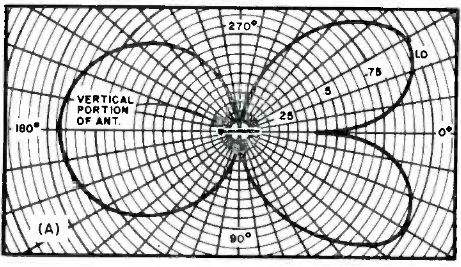

The horizontal radiation patterns for the Inverted L Antenna are shown here on A for the 20 meter, B for the 40 meter, and C for the 80 meter bands. Field strength shown are all relative.



www.antentop.org

Page- 18
