Ferrite Magnetic Antennas by RN3DEK.

Design, Experimenters and HF Antennas

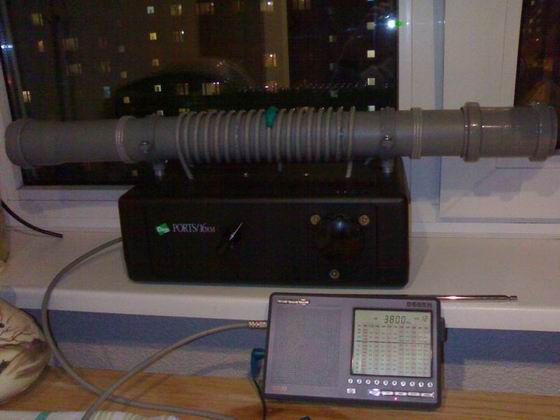

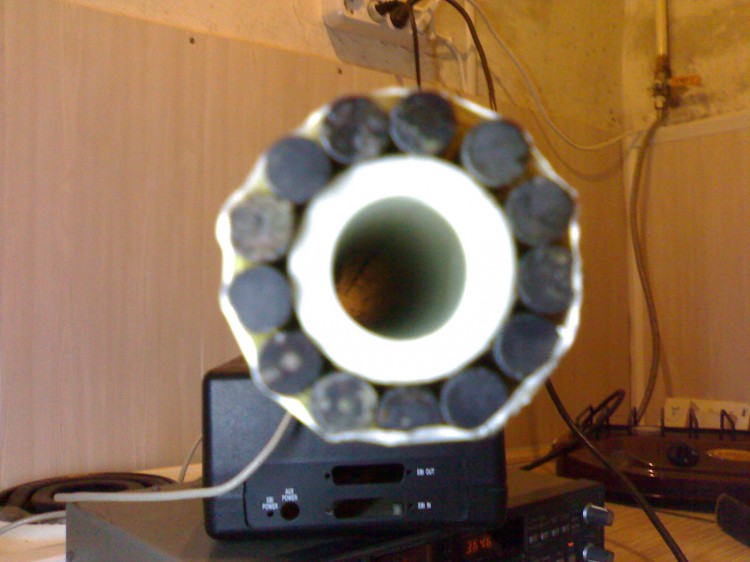

Ferrite Magnet Antenna. 5 Beams of 13 Rods (mu= 400) Inserted into Tube in Diameter 32- mm.

Inductor is Coiled by a Coaxial Cable.

Side View.

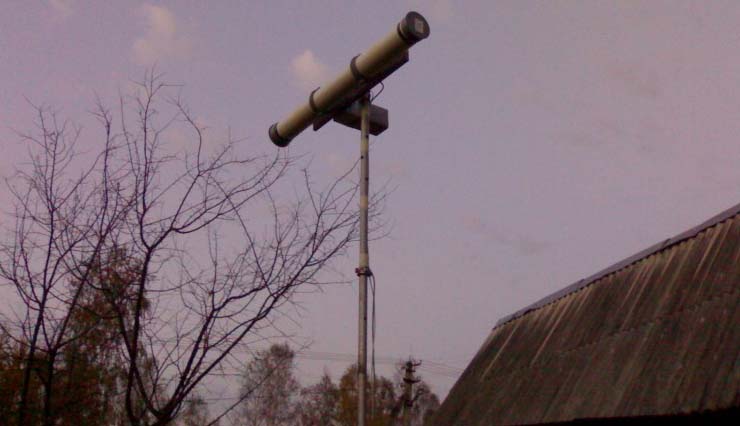

Giant Ferrite Antenna.

Ferrite Rod is 1000- mm Length.

Made of Ferrite Rods with mu= 400.

Mast is 5- meter in Height.



Ferrite Antenna for 40- m Band

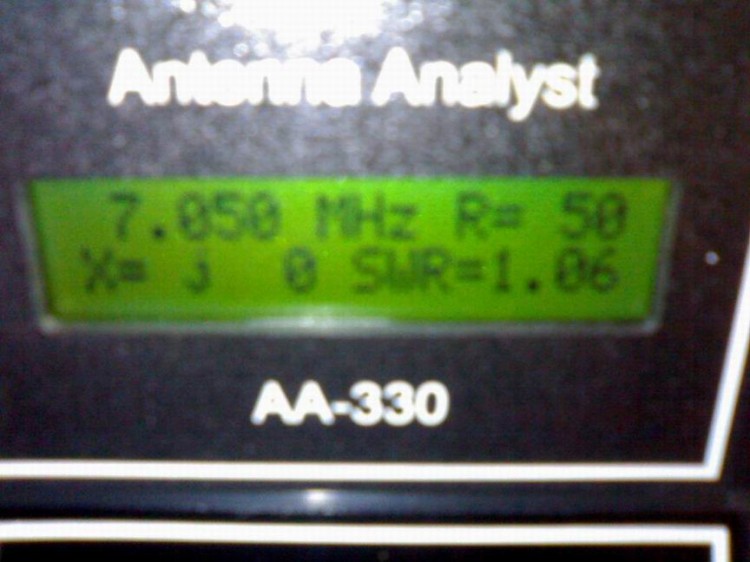

Parameters of the Ferrite Antenna for 40- m Band

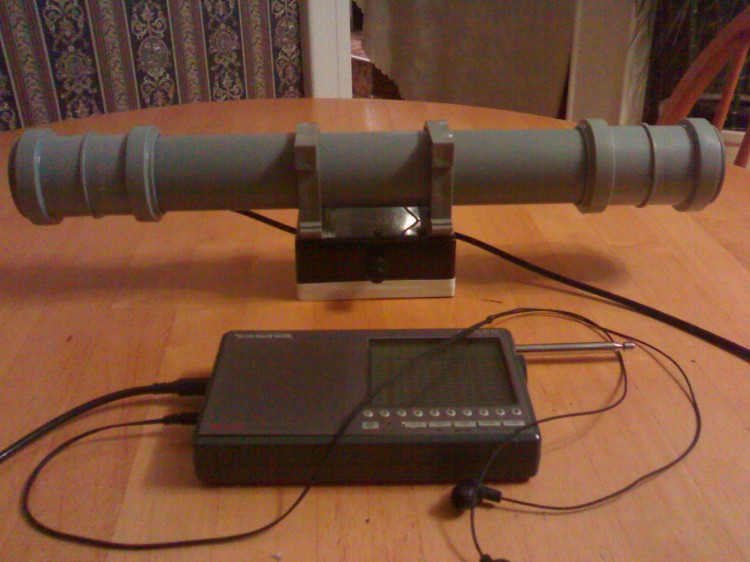

Ferrite Antenna for 40- m Band without Cover

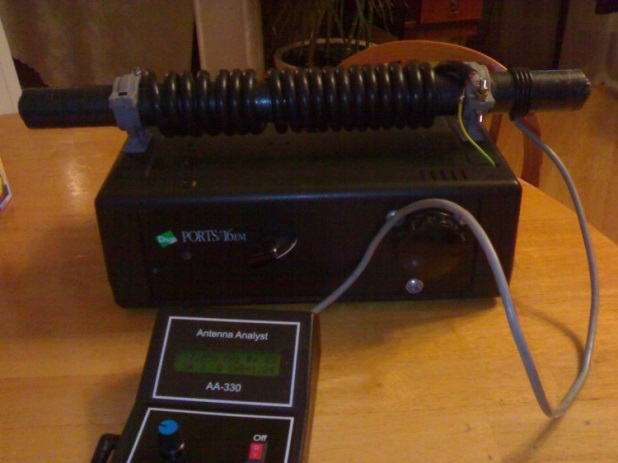

One of my First Ferrite Antenna
