ANTENTOP- 01- 2013 # 017

Ferrite Magnetic Antennas by RN3DEK.

Design, Experimenters and HF Antennas

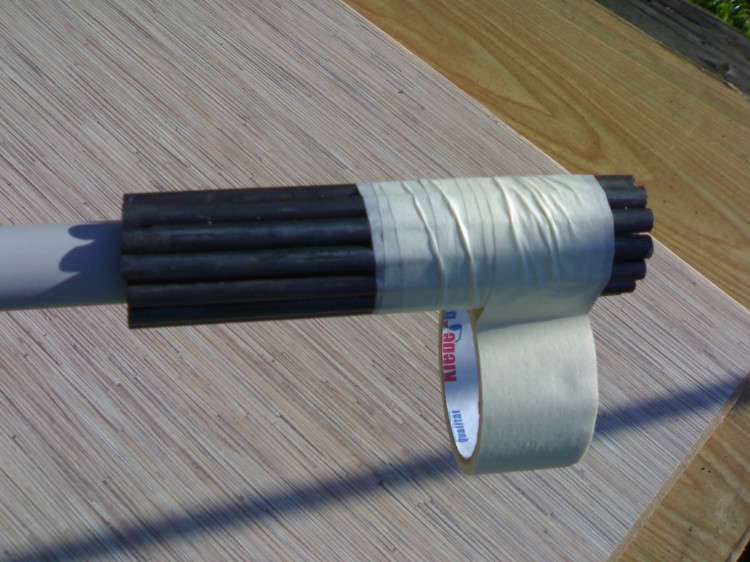

Making Ferrite for Antenna.

Paper Scotch is Better.



Symmetrical Ferrite Antenna for 160- m.

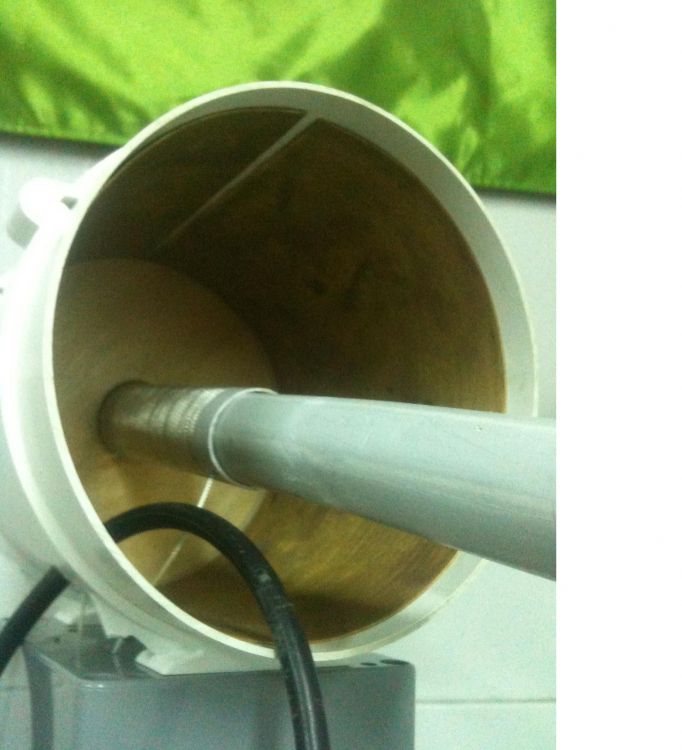

Ferrite Antenna. Static Shield.

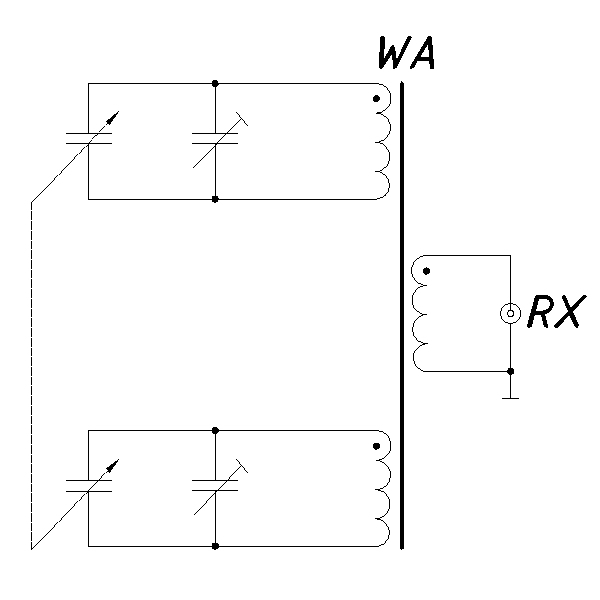

Schematic of the Symmetrical Ferrite Antenna

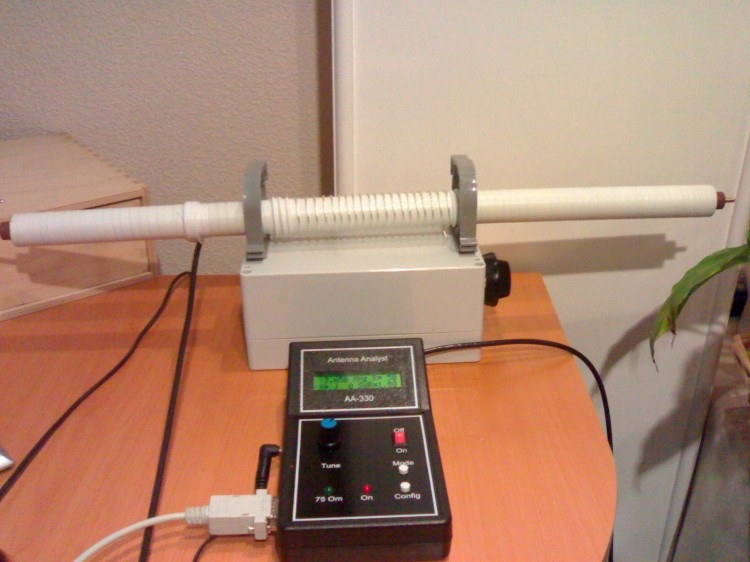

Ferrite Antenna for 80- m. Made of 100 Ferrite Rings of mu 200, sizes: 26 x 16 x 6 mm





www.antentop.org

Page- 65
