Ferrite Magnetic Antennas by RN3DEK.

Design, Experimenters and HF Antennas

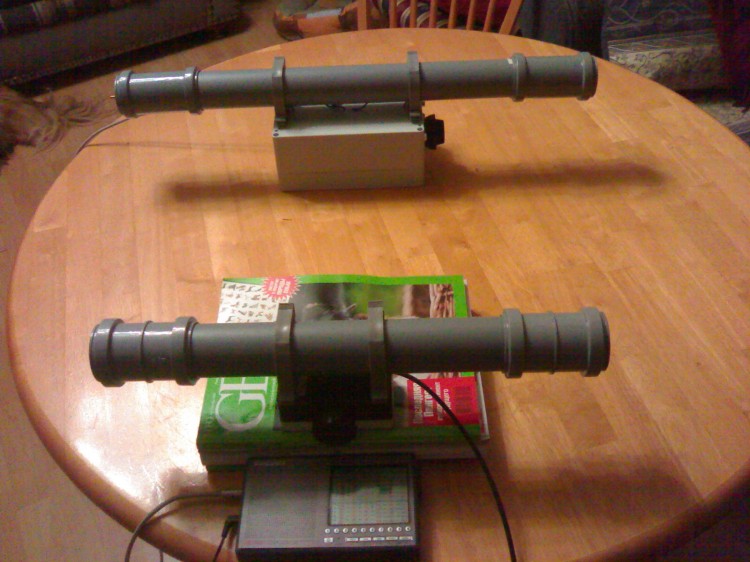

Experimenters with Two Ferrite Antennas,

Both Antennas are Tuned to Resonance.

No Receiving at All.





Experimenters with Two Ferrite Antennas,

Both Antennas are Tuned to Resonance.

Distance Between the Antennas is 70- cm.

Reception is Recovered.

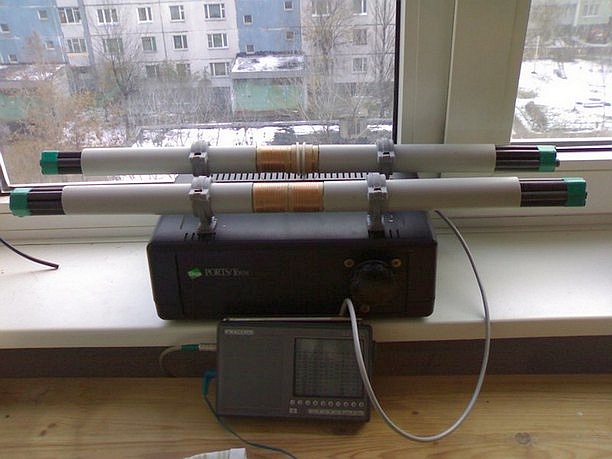

Experimenters with Two Ferrite Antennas,

Both Antennas are Tuned to Resonance.

Reception down to 3- dB when the Antennas are Headed Ends by Each Other.

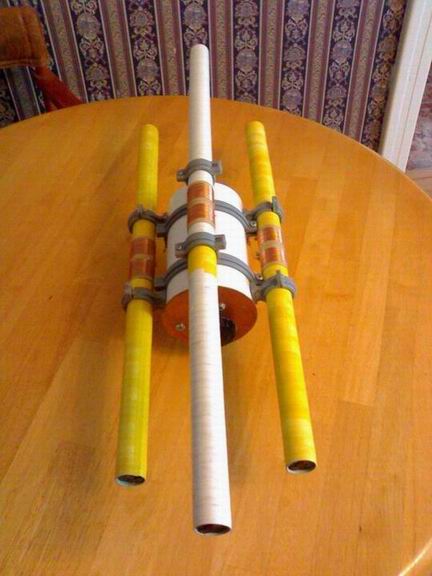

Ferrite Antenna. 3- Ferrite Rods

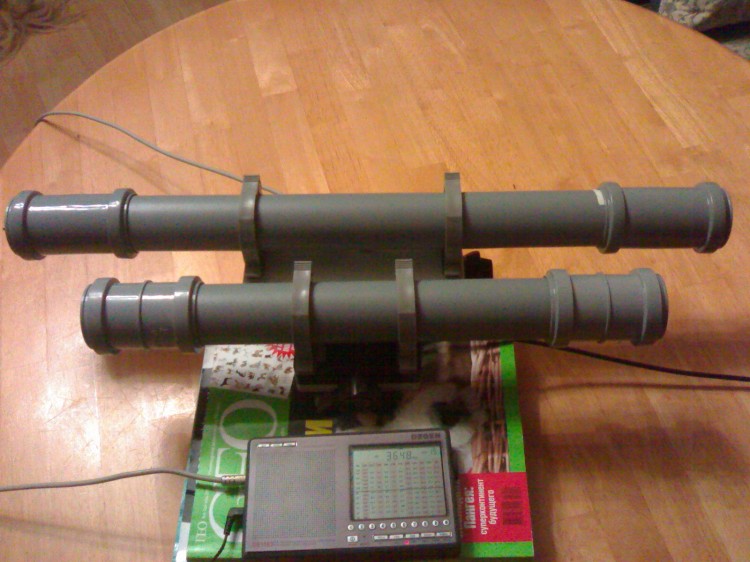

Ferrite Antenna. Two Ferrite Rods with L= 600- mm.

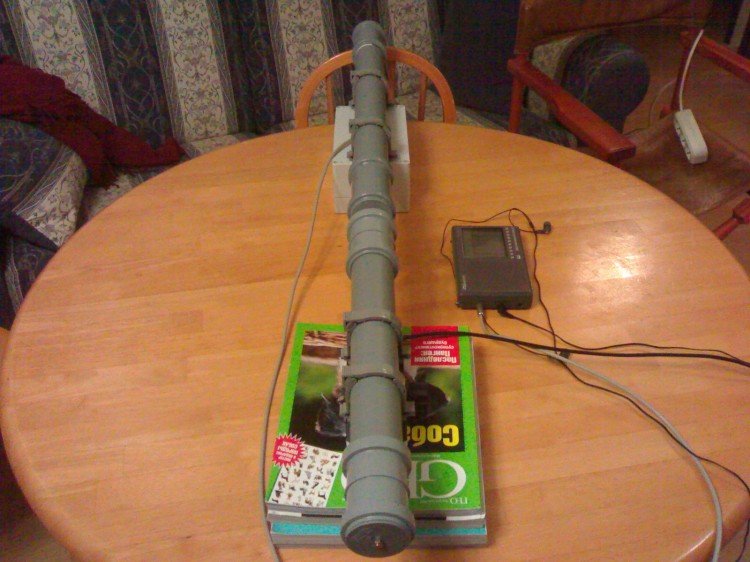

Ferrite Antenna. 3- Ferrite Rods.

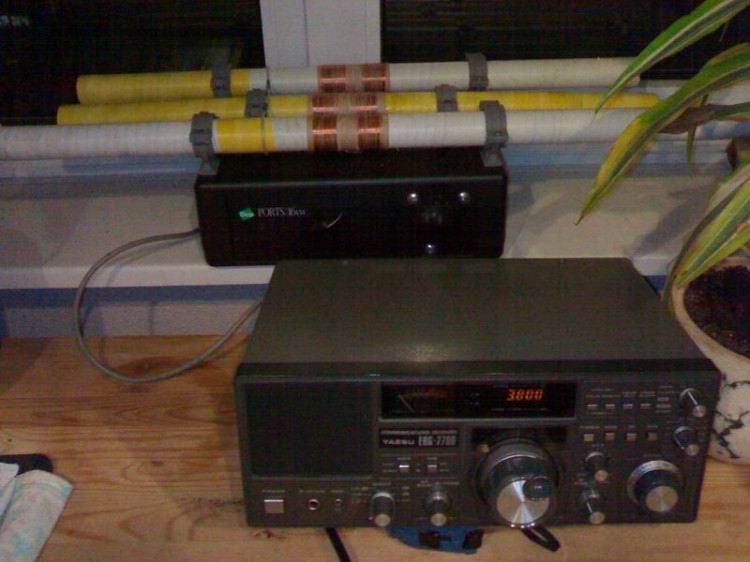

Inductors Switched on to Bridge.
