ANTENTOP- 01- 2013 # 017

Ferrite Magnetic Antennas by RN3DEK.

Design, Experimenters and HF Antennas

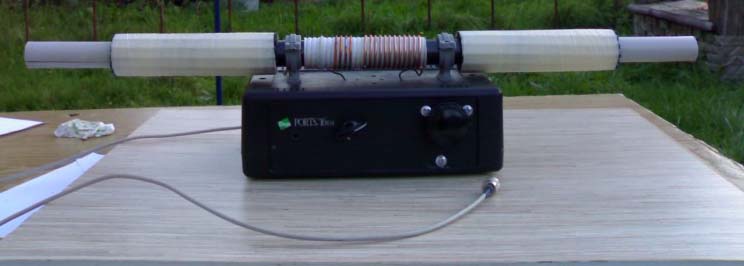

Ferrite Antenna. 3- Ferrite Rods.

Inside View.



Ferrite Magnet Antenna.

Main Ferrite Rod Made of Ferrite Rings with mu= 50.

Concentrator made of 13 x Ferrite Rods with mu= 400.



Ferrite Magnet Antenna.

Main Ferrite Rod Made of Ferrite Rings with mu= 50. It is Prolonged with Ferrite Rods with mu= 400.

Concentrator made of 13 x Ferrite Rods with mu= 400.

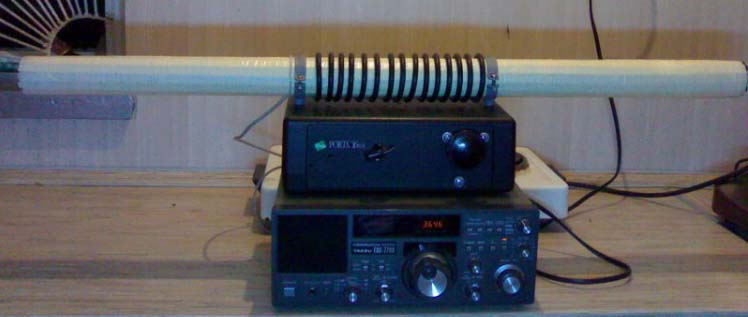

Ferrite Magnet Antenna. 5 Beams of 13 Rods (mu= 400) Inserted into Tube in Diameter 32- mm.

Inductor is Coiled by a Coaxial Cable.
