ANTENTOP- 02- 2004, # 006

Field Universal HF Antenna RV3DA



Antenna RV3DA at 6-m

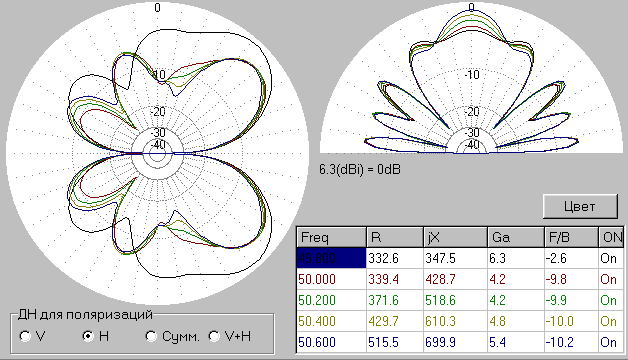

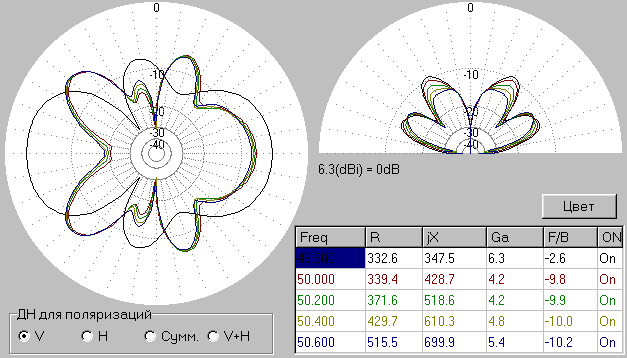

Vertical Radiation Pattern





Horizon Radiation Pattern









Comments: Antenna has horizon and vertical radiation. For the horizon radiation antenna has a not bad pattern in the vertical plane, and “eight- figure” pattern dropped to lobes in the horizon plane.  Antenna can provide DX QSOs at horizon radiation.  Antenna has impedance 429+j599-Ohms at 50600-kHz.  Not all ATUs do good matching for such load.
