Field Universal HF Antenna RV3DA



Antenna RV3DA at 17-m

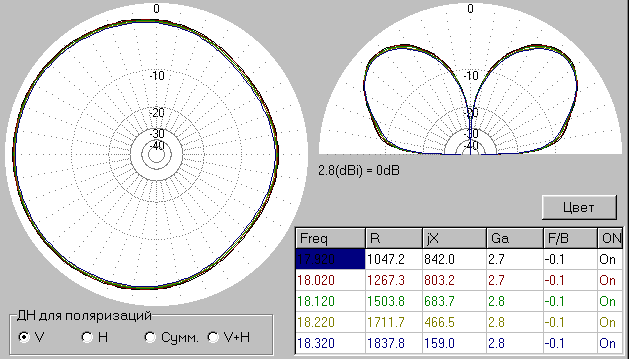

Vertical Radiation Pattern





Horizon Radiation Pattern









Comments: Antenna has both, a strong vertical and strong horizon radiation. For the vertical radiation antenna has a good pattern in the vertical plane, and almost circular pattern in the horizon plane. Pattern for horizon radiation is not so good as to vertical polarization.  Antenna can provide DX QSOs at vertical and horizon radiation.  Antenna has impedance 1711+j466-Ohms at 18220-kHz.  Not all ATUs do good matching for such load.
