ANTENTOP- 02- 2004, # 006

Field Universal HF Antenna RV3DA



Antenna RV3DA at 20-m

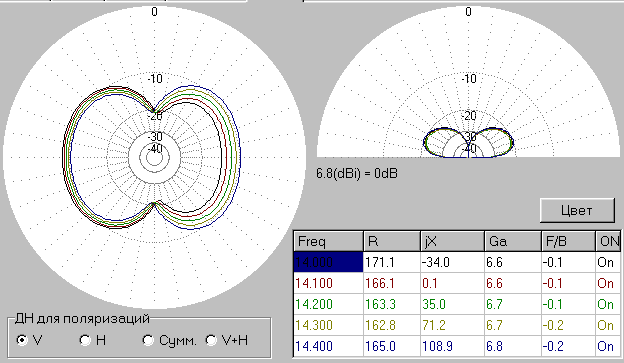

Vertical Radiation Pattern

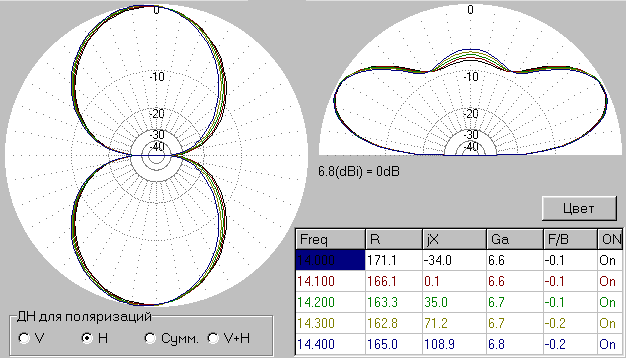

Horizon Radiation Pattern









Comments: Antenna has strong horizon radiation. A good  pattern in the vertical plane. Antenna has a strong radiation at low corners that allows to do DX QSOs. Antenna has almost “eight- figure” pattern in horizontal plane, so, it demands to choose a proper direction before an installation of the antenna. Antenna provides DX QSOs. Antenna has the resonance at 14100-kHz at 166 Ohms. Any ATU does good matching for the antenna.
