Shunt Vertical Universal HF Antenna
Custom Search
|
ANTENTOP-
02- 2004, # 006 |
Field
Universal HF Antenna RV3DA |
|
|
|
||
|
Antenna

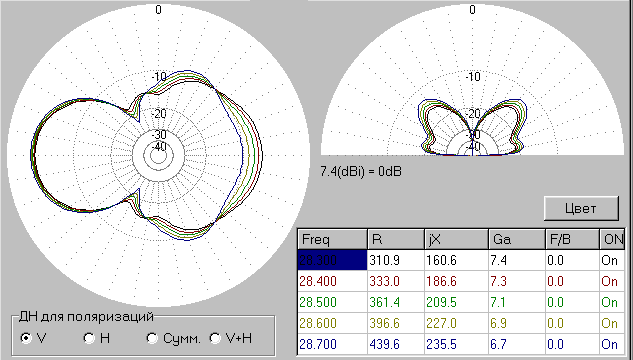

RV3DA at 10-m |
||
|
Vertical

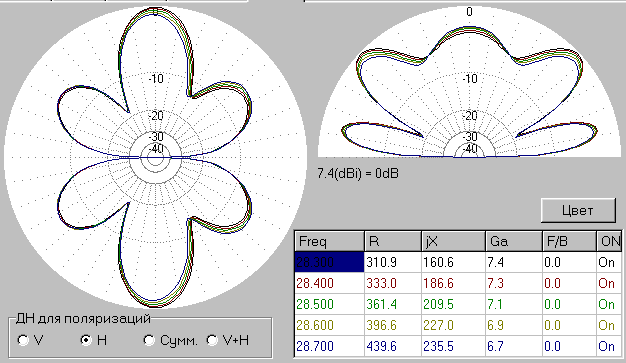

Radiation Pattern |
|
|
|
|
||
|
Horizon
Radiation Pattern |
|
|
|
|
||
|
|
|
|
|
Comments:
Antenna has strong horizon radiation. For the horizon
radiation antenna has a not bad pattern in the vertical plane,
and "eight- figure" pattern dropped to lobes in the
horizon plane. Antenna can provide DX QSOs at the horizon radiation.
Antenna has impedance 396+j227-Ohms at 28600-kHz. Not all ATUs
do good matching for such load. |
|
|
|
|
|
|
|
|
