Antennas UA6AGW. Modification and Development

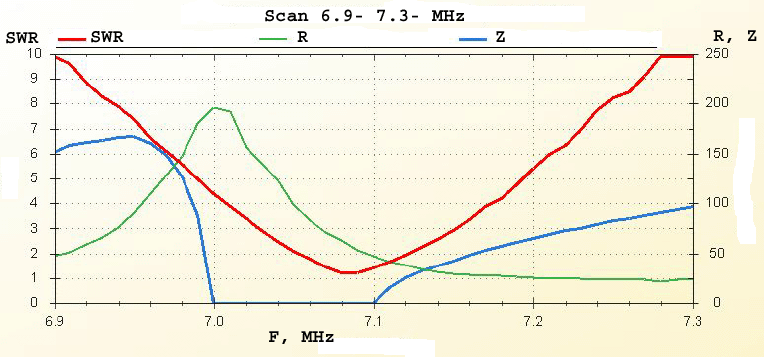

Figure 4 Parameters of the Antenna UA6AGW V.40.01



Antenna UA6AGW V.80.01

Design of the antenna UA6AGW V.80.0 was modified for purpose to reach a low reactance and ability to tune the antenna to resonance across the 80- meter Band. The new version was named antenna UA6AGW V.80.01.

Figure 5 shows the design of the antenna. Antenna has pass band (at SWR 2.0: 1.0) only 100- kHz. However, capacitor C2 (the capacitor is accessible for me so to tune the antenna for needed part of the band is a not big deal) can tune the antenna across the 80- meter Band.

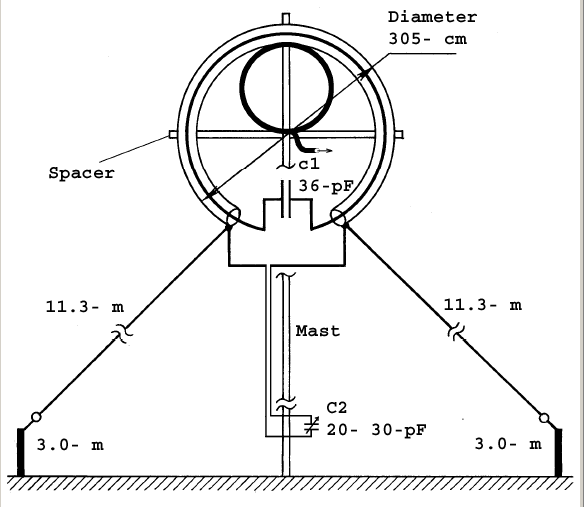

Figure 5 Design of the Antenna UA6AGW V.80.01
