Antennas UA6AGW. Modification and Development

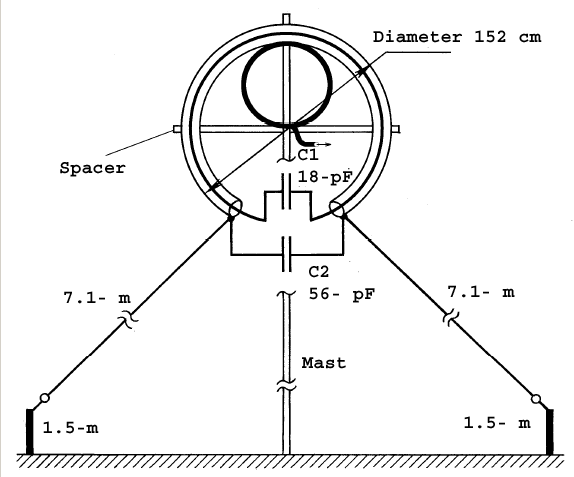

Figure 2 Design of the Antenna UA6AGW V.40.01

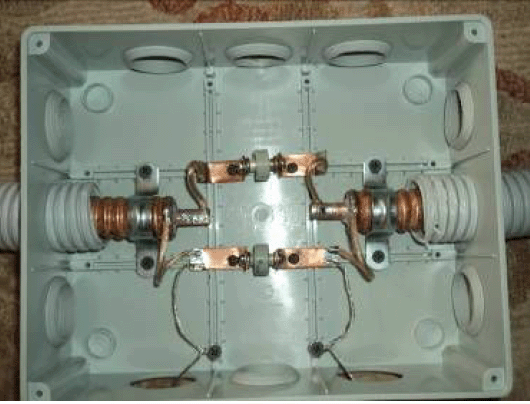

Figure 3 Capacitors Box

Antenna UA6AGW V.40.02

Another version of the antenna- the Antenna UA6AGW V.40.02 was created like a cheap, light and suitable for field day antenna design. To reach the goals for loop of the antenna it was used a light coaxial cable with outer diameter of ½ inch.



Geometrical sizes of the antenna parts and the value of the capacitors are the same as for antenna UA6AGW V.40.01.Parameters of the antenna are almost equal to parameters of the antenna UA6AGW V.40.01 (those ones are shown at Figure 4).
