Multiband Asymmetrical Dipole Antenna

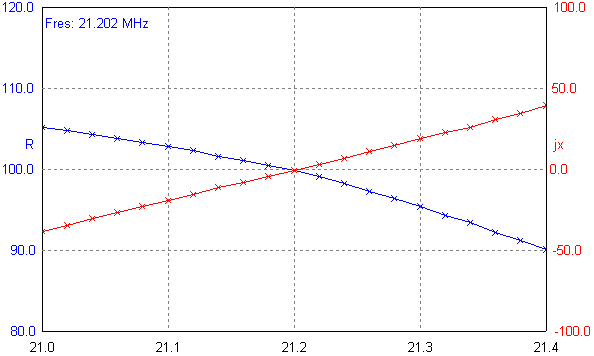

Figure 21 Z of the Asymmetrical dipole for 80/40/20/15/10- meter bands at 15 meter Band

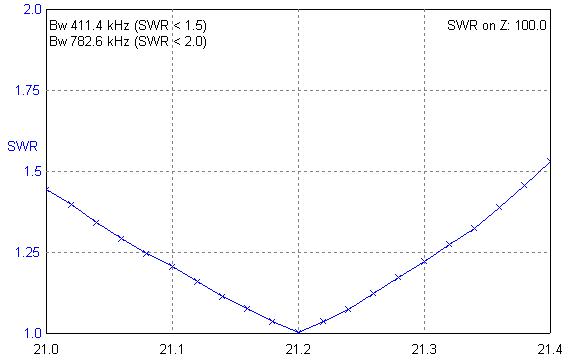

Figure 22 SWR of the Asymmetrical dipole for 80/40/20/15/10- meter bands at 15 meter Band

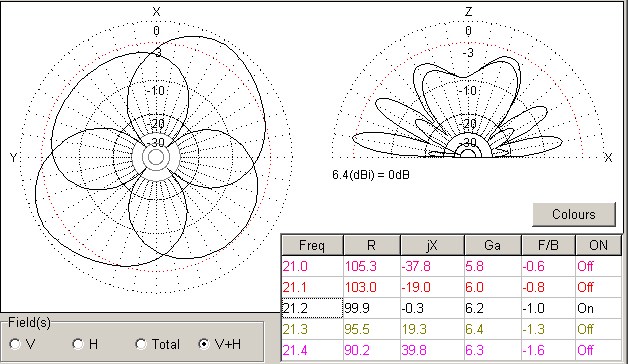

Figure 23 DD of the Asymmetrical dipole for 80/40/20/15/10- meter bands at 15 meter Band
