ANTENTOP- 02- 2010, # 014

Multiband Asymmetrical Dipole Antenna



The publications devoted to memory UR0GT.







By: Nikolay Kudryavchenko, UR0GT



Asymmetrical dipole for 80/40/20/10- meter bands is shown on the Figure 1.



The MMANA model of the Asymmetrical dipole for 80/40/20/10- meter bands may be loaded:

http://www.antentop.org/014/dipole_014.htm

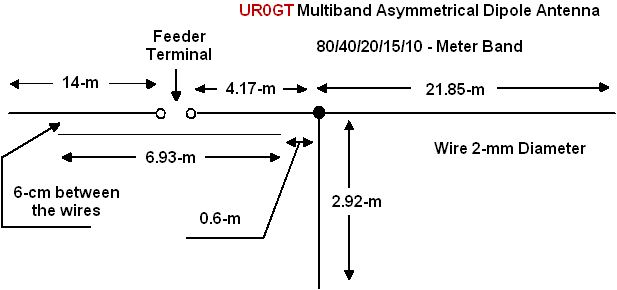

Asymmetrical dipole for 80/40/20/15/10- meter bands is shown on the Figure 2.



The MMANA model of the Asymmetrical dipole for 80/40/20/10- meter bands may be loaded:

http://www.antentop.org/014/dipole_014.htm



Figure 1 Asymmetrical dipole for 80/40/20/10- meter bands



Figure 2 Asymmetrical dipole for 80/40/20/10- meter bands





www.antentop.org

Page 35
