ANTENTOP- 02- 2010, # 014

Multiband Asymmetrical Dipole Antenna





Parameters for the antennas are shown below. The data were got at the antenna placed at 20 meters above a real ground.



To match the antenna with coaxial cable 50- Ohm it is need transformer 1:3 or may be 1:4 to improve the efficiency at the 10- meter Band.

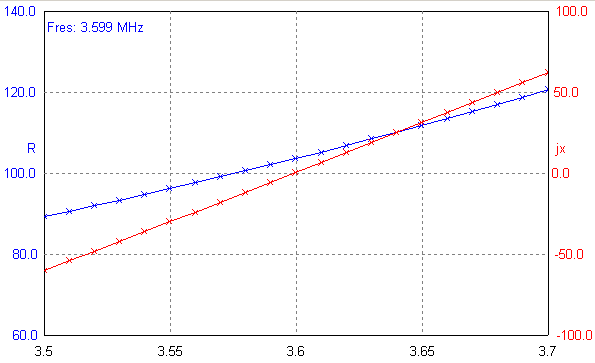

Figure 3 Z of the Asymmetrical dipole for 80/40/20/10- meter bands at 80 meter Band

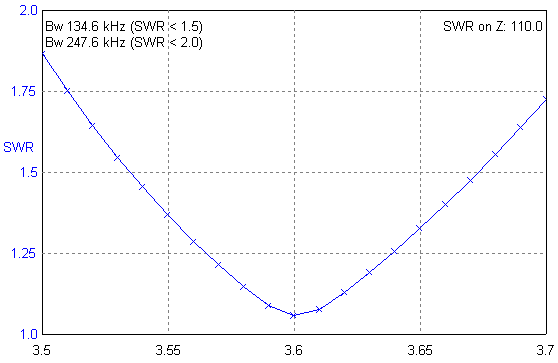

Figure 4 SWR of the Asymmetrical dipole for 80/40/20/10- meter bands at 80 meter Band

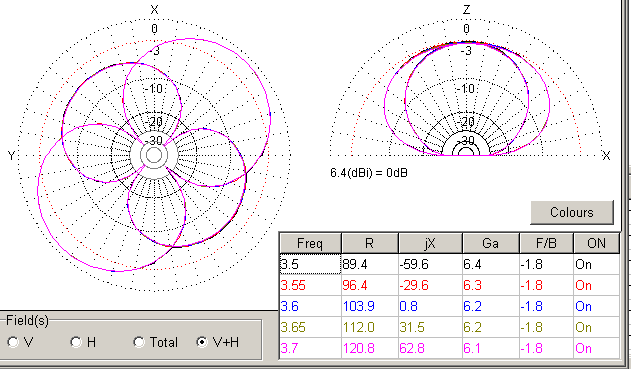

Figure 5 DD of the Asymmetrical dipole for 80/40/20/10- meter bands at 80 meter Band



www.antentop.org

Page 36
