ANTENTOP- 01- 2006, # 008

Spreading Antennas of SRCB

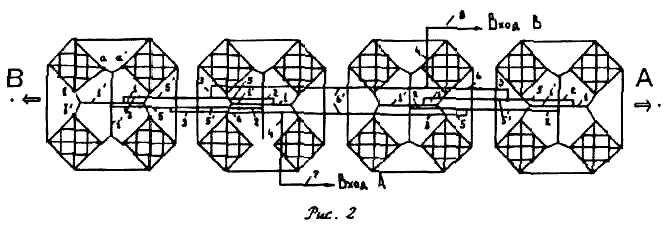

Figure 2 Spreading Antenna BAZA 1500D

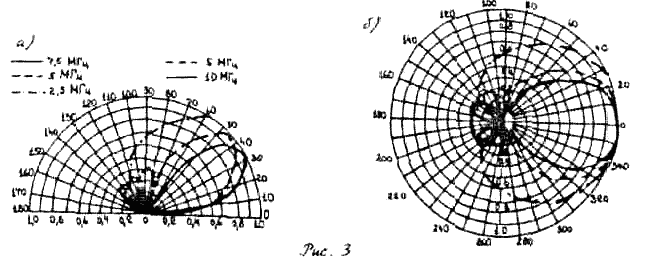

Figure 3 Diagram directivity for BAZA 1500D



SA is flat phasing array consisting of 2 x 4 flat radiators when it works in the side A. Vertical polarized waves are radiated in the side.

SA is lineal array when it works in the side B. Horizon polarized waves are radiated in the side.

So, BAZA 1500D can provide communication in two different sides.



Diagram directivity for BAZA 1500D is shown in Fig. 3. Antenna has maximum of radiation at 25 60 that needs for communication at a middle distance. It takes 25 minutes to install antenna BAZA 1500D.



Credit Line: http://www.cqham.ru/ant42.htm
