ANTENTOP- 02- 2003, # 003

GNOMIK- 80-M QRP- transciever



Kit is available at RV3GM

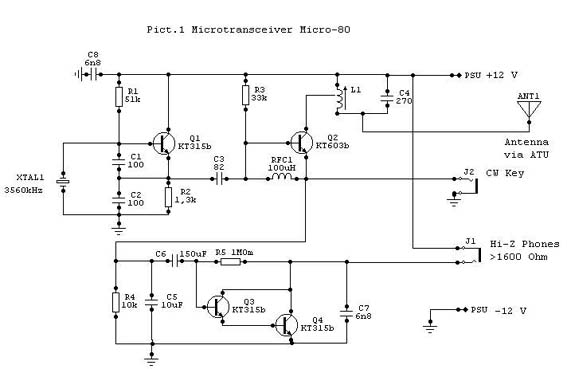

"Micro-80" is the first smallest and the simplest transceiver in the World. This is a prototype of some next wellknow kits "PIXIE", "Tiny Tornado".



This transceiver's kit contains all the components (without xtal only), PCB and assembly manual. Just 4

n-p-n transistors, 5 resistors, 2 inductors and 7 capacitors are mount on 35 x 50 mm PCB.



There are some QSO's from RV3GM Log Book operated with "Micro-80":

Kit is available at RV3GM





www.antentop.org

Page 62
