RN3DEK 4- Element Antenna

for the 145- MHz Band

RN3DEK 4- Element Antenna for the 145- MHz Band : by: Yuriy Skutelis, RN3DEK

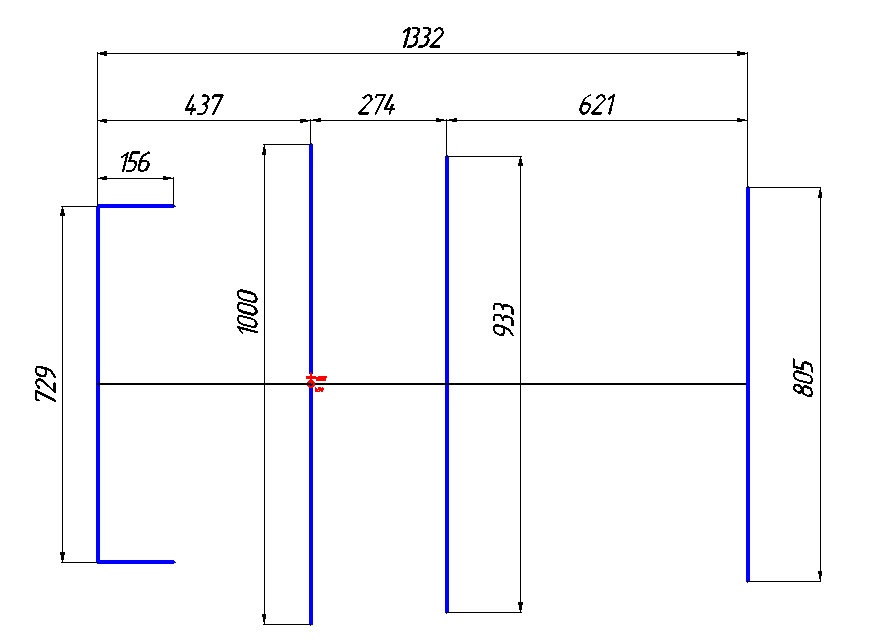

There is presented 4- element antenna for the 145- MHz Band. Antenna has good SWR at the band. Antenna has input impedance 28- Ohm. For matching of the antenna with 50- Ohm coaxial cable there is used known matching device on two parallel length of 75- Ohm coaxial cable. To compensate reactive component a capacitor is switched on with the vibrator…



PDF file, 300 KB (ANTENTOP-01-2018, pp.: 49- 50)

Download PDF File!

MMANA File

HTML Version
