RN3DEK 4- Element Antenna for the 145- MHz Band

RN3DEK 4- Element Antenna for the 145- MHz Band

By: Yuriy Skutelis, RN3DEK

Credit Line: Forum at cqham.ru

There is presented 4- element antenna for the 145- MHz Band. Antenna has good SWR at the band. Antenna has input impedance 28- Ohm. For matching of the antenna with 50- Ohm coaxial cable there is used known matching device on two parallel length of 75- Ohm coaxial cable. To compensate reactive component a capacitor is switched on with the vibrator.

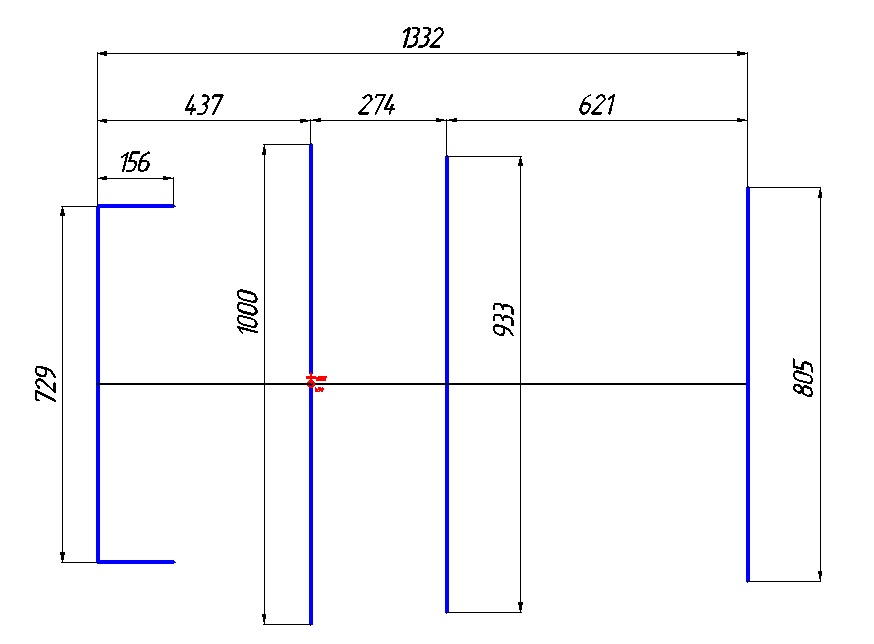

Figure 1 shows schematic of the antenna. Figure 2 shows capacitor in series with antenna vibrator. Figure 3 shows matching device 28/50- Ohm. Antenna reflector made of tube/rod in diameter of 5- mm. All others antenna elements of the antenna made of tube/rod in diameter of 8- mm.

The antenna has reflector with bent ends. It is done to improve F/B ratio. Anyway you may play with model of the antenna in MMANA and check what you could reach.

Figure 4 shows Z of the antenna. Figure 5 shows SWR of the antenna. Figure 6 shows DD of the antenna.

73! RN3DEK

Figure 2 Capacitor in Series with Antenna Vibrator

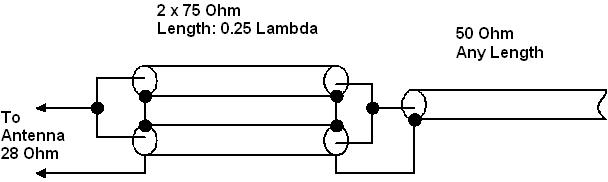

Figure 3 Matching Device 28/50- Ohm

MMANA File of the RN3DEK 4- Element Antenna for the 145- MHz Band may be downloaded at:

http://www.antentop.org/022/RN3DEK _4_el _022.htm

Figure 1

RN3DEK 4- Element Antenna for the 145- MHz Band
