Wide Band 1:4 RF Transformer for Matching 200 Ohm Antenna to 50 Ohm Coaxial Cable

Wide Band 1:4 RF Transformer for Matching 200 Ohm Antenna to 50 Ohm Coaxial Cable : by: Anatoli, RL1L

Yeh, it is too long title for the article however it is the right one. Below it is described two variants of wide band 1:4 RF transformer for matching 200 Ohm antenna to 50 Ohm coaxial cable. One transformer for unbalanced another one for balanced antenna. Transformer works well at all HF- Band from 160 to 10 meter. Transformer is very simple to do. Design of the transformer is clear understandable from the schematic and pictures…



PDF file, 190 KB (ANTENTOP-01-2018, pp.: 91- 92)

Download PDF File!

HTML Version

Contents for AntenTop 01- 2018

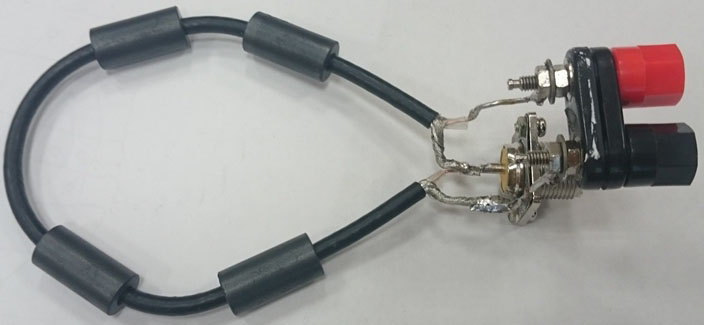

Picture of the Transformer for Unbalanced Antenna
