Two Helical Antennas for 160 meter Band

Custom Search



ANTENTOP- 01- 2017 # 021

Two Helical Antennas for 160 meter Band

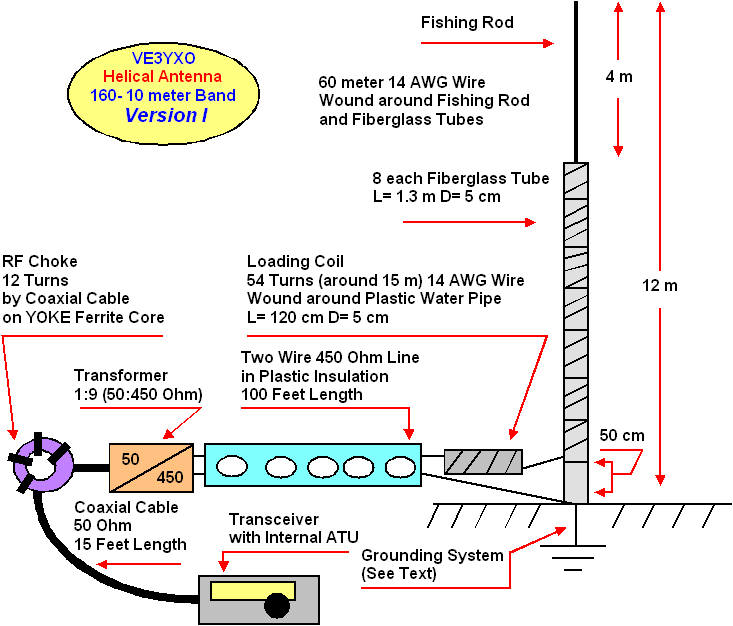

Figure 1

Design of the Helical Antenna for the 160 meter Band



Figure 3 shows Balun with RF- Choke in my basement. Coaxial cable was connected directly to my transceiver that had internal ATU.



The Helical antenna had serious ground.

Copper rod in three meter length was hammered near base of the antenna. Near 10 radials in 40 meter length was placed near base of the antenna on the ground of my back yard. Also for antenna ground it was used backyard metal fence.
