The Three L-Antennas









Summary

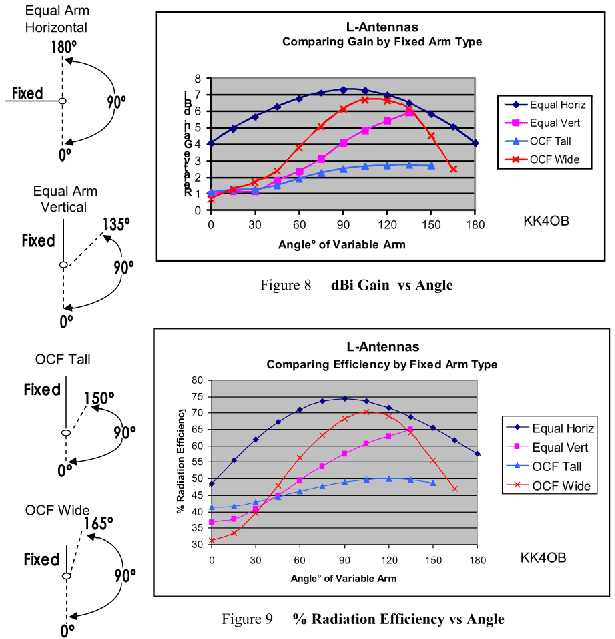

The following two graphs (Figures 8 and 9) compare the Relative Gain and % Radiation Efficiency of four kinds of dipoles, each as one of the antenna arms is adjusted through a range of angles.



All feedpoints at ½ wavelength elevation.

Plots stop at the point where the SWR exceeds 2:1.

OCF used is a 1/3-2/3 ratio.

  1. Equal-arm Horizontal (dark line, diamond marker). 90 = standard horizontal dipole.
  2. Equal-arm Vertical (violet line, square marker). 0 = standard vertical dipole.
  3. OCF Tall (blue line, triangle marker). 90 = Tall L-Antenna.
  4. OCF Wide (red line, X marker). 90 = Wide L-Antenna
