Memorandum on the Beverage Wave Antenna





TERMINAL CONNECTIONS

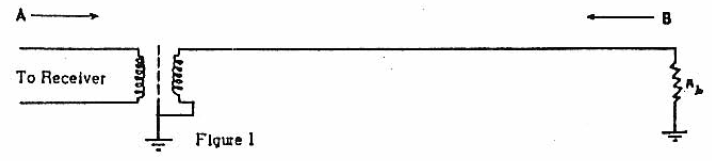

Single Conductor for Forward Reception





A. Signals from A direction are dissipated either completely or partially in Rb.

B. Direction of reception.

 Removal of Rb permits the antenna to be used bi-directionally or forward and rear.

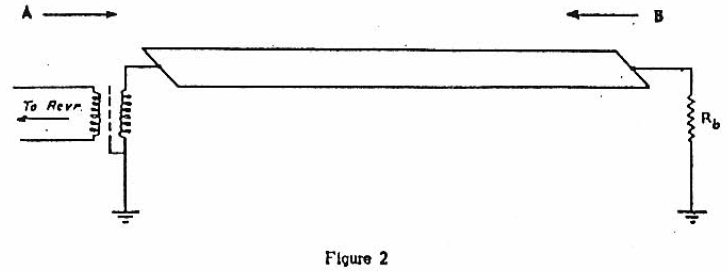

Two Conductors for Forward Reception





All the factors are the same as the single conductor type except that the surge impedance will be lower as a result of the two conductors in parallel.



A. Direction reception
