Three Element Yagi Antenna for 145- MHz

with Square Reflector

Three Element Yagi Antenna for 145- MHz with Square Reflector: By: Yuriy Skutelis, RN3DEK

Credit Line: Forum from:
www.cqham.ru

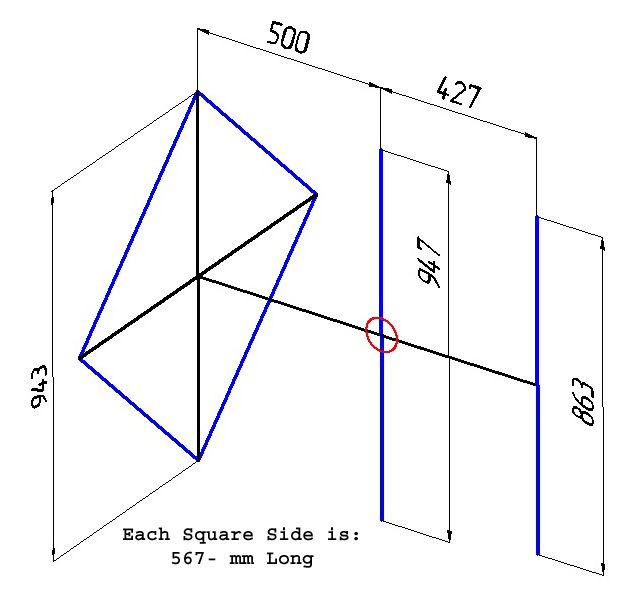

The antenna provides good F/B ratio. Antenna has input impedance 50- Ohm that allows fed the antenna directly through 50- Ohm coaxial cable. It was reached by special form of the reflector....



PDF file, 210 KB (ANTENTOP-01-2015, pp: 65- 66)
