Simple HF Regenerative Receiver











Nikolay Tyapkin

Credit Line: Radio # 3, 1946. Pp.: 42- 47.





This receiver works at all ham HF Bands- 160, 80, 40, 20, 15 and 10- meters. Bands are changed with help of plug-in coils. Receiver contains only two tubes. One tube is a pentode. This one used at an RF-amplifier. Another tube is twin triode. The tube used for the regenerative detector and audio amplifier.



(I.G.: In middle of the 70s I made this receiver. It worked great! However, the RF stage did not use by me because of the blocking by nearest powerful MW broadcasting and TV transmitters.)

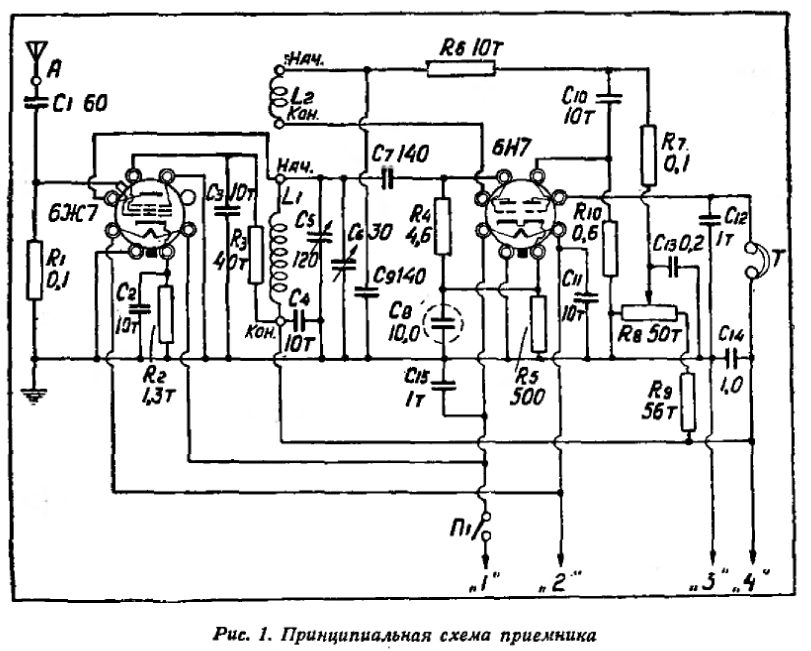

Figure 1 Schematic of the Simple HF Regenerative Receiver
