ANTENTOP- 01- 2013 # 017

Ferrite Magnetic Antennas by RN3DEK.

LW, MW and 160- m Antennas

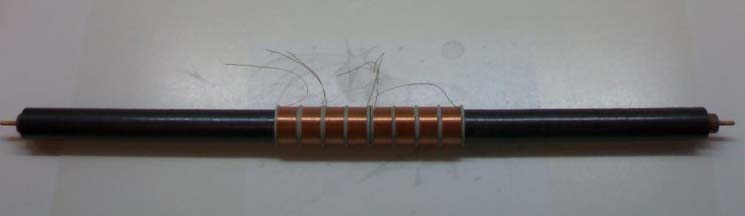

Aperiodic Ferrite Antenna

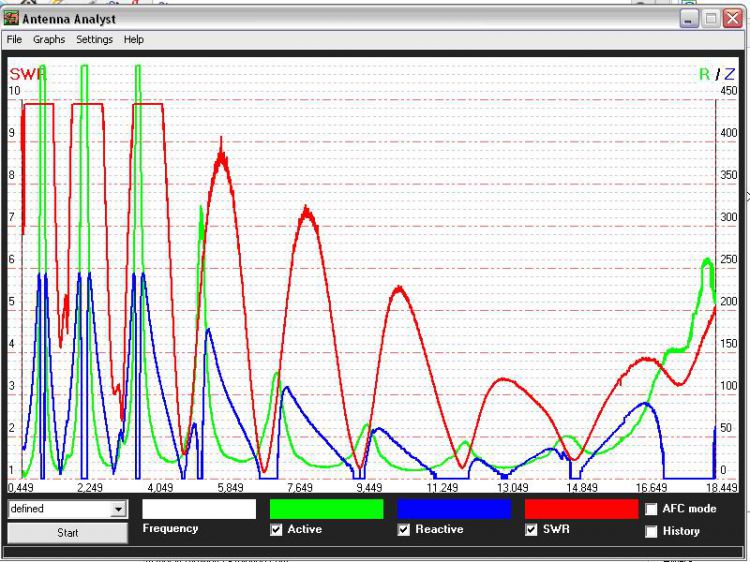

SWR of the Aperiodic Ferrite Antenna in Wide Range

449- 18.449- kHz

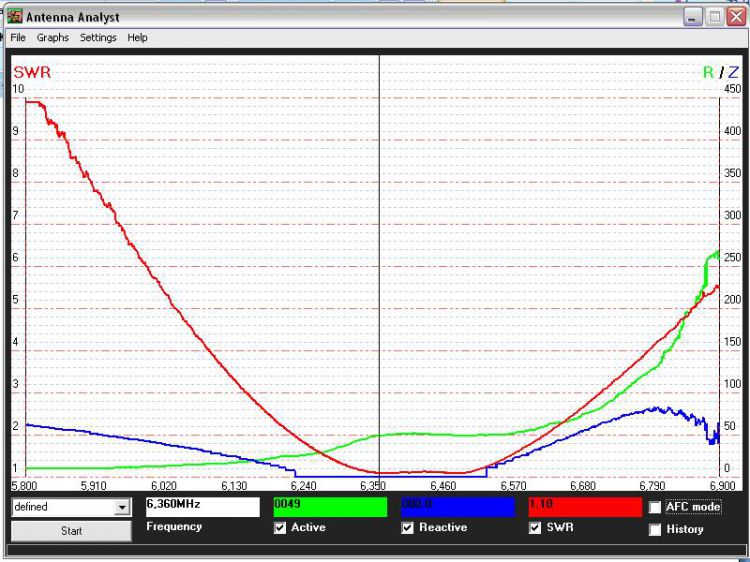

SWR of the Aperiodic Ferrite Antenna in Narrow Range

5.800- 6.900- kHz

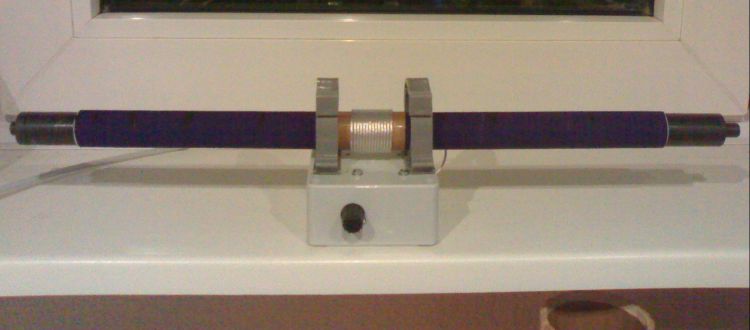

LW Ferrite Antenna. Made of 74 ferrite rings mu= 2000, 32 x 20 x 9- mm.

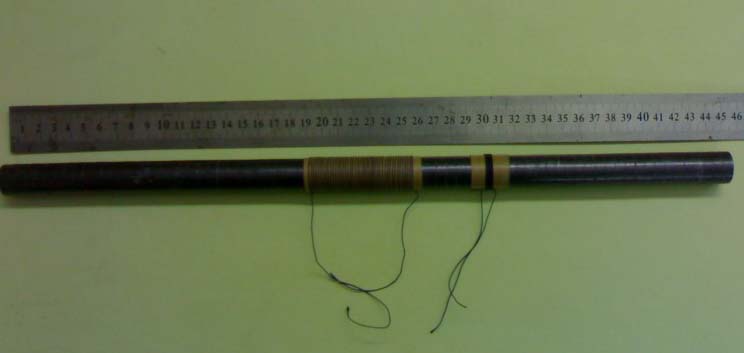

Ferrite mu= 400





www.antentop.org

Page- 71
