Antentop is FREE e-magazine devoted to Antennas and Amateur Radio an

Special page devoted to

Discone Antenna for the 2- meter Band

Custom Search



ANTENTOP- 01- 2012, # 016

Discone Antenna for the 2- meter Band





Coaxial cable RK- 47 ( 50- Ohm ) item 11  in length of 74- cm placed into the tube item 9. Center conductor item 10 of the cable is soldered to RF- Socket item 14. Braid of the cable with help of clips item 12 is connected to the tube item 9. RF- Socket item 14 is installed on the box item 13. Window item 19 is cut on the tube item 9. Lid item 15 provides access for soldering of the cable item 11 to the RF-Socket item 14. Bracket item 16 allows fasten the antenna to the antenna mast and intended for guys.

Assembly drawing of the antenna is shown on the Figure 4. Items on the figure are corresponded to the items from the Figure 2.

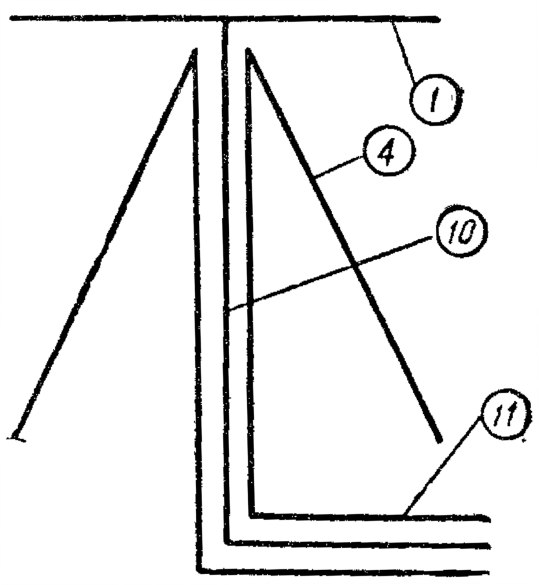

Figure 4 Assembly drawing of the Discone Antenna

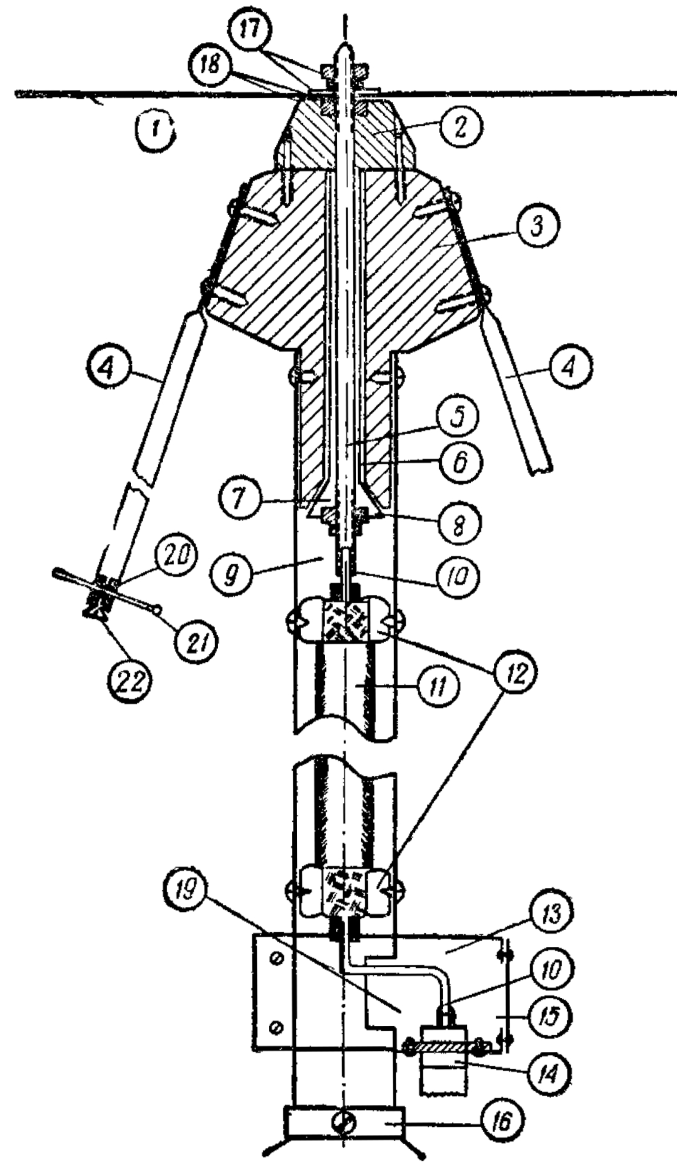

Figure 2 Design of the Discone Antenna

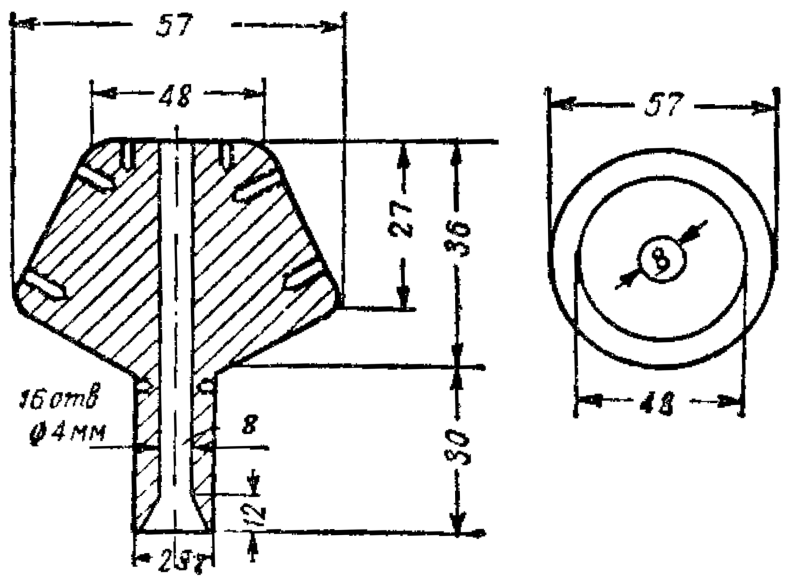

Figure 3 Design of the Cone

www.antentop.org

Page-70
