EH Antenna for the 20- meter Band

Making the EH- Antenna.

Figure 1 shows design of the antenna. Before the making of the antenna, please, carefully read all the article. Special attention should be taken to places that printed in the red color.

Take two copper sheets. Put it on to a plane surface. Clean by sandpaper sides in 160- mm long. Tin the sides by a soldering iron (100- Wtt would be good stuff). Clean up the flux. Tinned sheets roll up by the Polypropylene Tube on the plane surface.

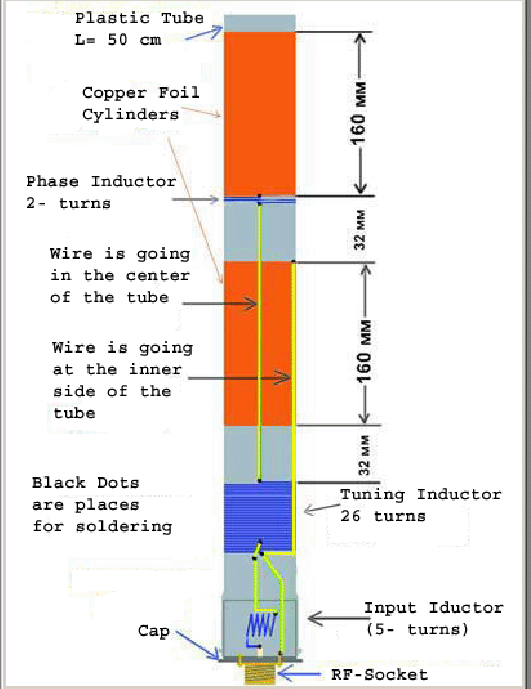

Figure 1 Design of the EH- Antenna for the 20- meter Band
