Special page devoted to

Antenna “Strela”



Antenna “Strela”: by: UA4SZ Valery Kiselev

Antenna Strela (in transcription from Russian it means “Arrow”) is a modification of the well-known dipole antenna Bazooka that is widely used by hams.

However antenna Strela is contained less stuff for manufacture, antenna Strela is lighter then antenna Bazooka. Antenna Strela has good matching with the coaxial cable and SWR of the antenna on the working Band looks like better then Bazooka could provide there...

PDF file, 540 KB (ANTENTOP-01-2011, pp: 52- 55)

Download PDF File!

HTML Version

Contents for AntenTop 01- 2011

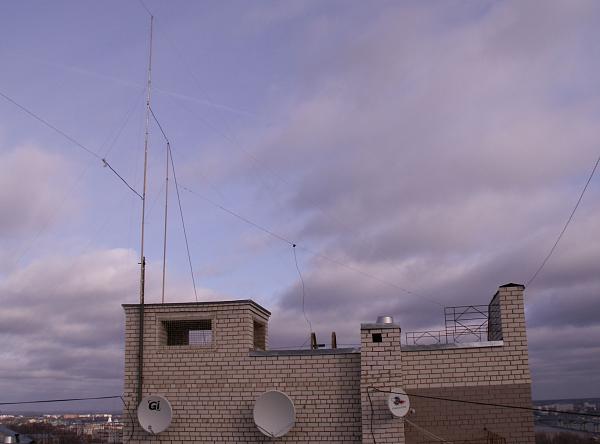

Antenna Strela on the Roof
