ANTENTOP- 02- 2010, # 014

Grounded and Underground Antennas





Central conductor is connected to “antenna” terminal. Screen of the coaxial cable is connected to the “ground” terminal of the transmitter.



Figure 147 shows Diagram of Directivity in the horizon plane of the Cable Underground Antenna.

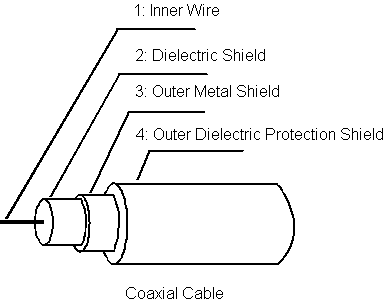

Table 1 Old Russian Coaxial Cables RK1,  RK3 and RK6



Type



Zw, Ohm

Diameter 1, mm

Diameter 2, mm

Diameter 3, mm

Diameter 4, mm



RK1



77

1x0.68

4.6

5.2

7.3



RK3



68

1x1.37

9.0

9.6

13.0



RK6



52

7x0.85

9.2

9.8

12.4

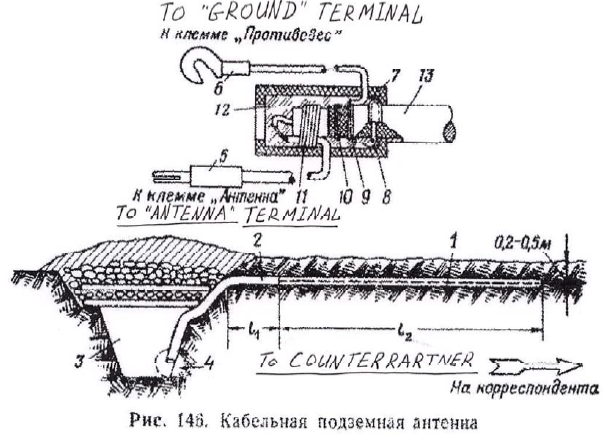

Figure 146 Cable Underground Antenna



www.antentop.org

Page-18
