Practical Photos for P.A. on Tube GU-43B

Photo # 11

Photo # 11. Process is going.

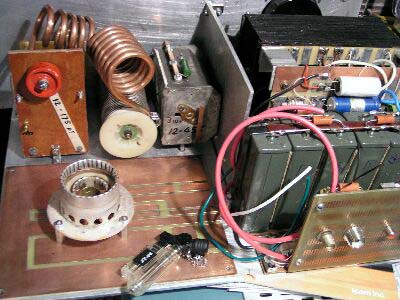

 Photo # 12. Process is going. Here is at right lower side is shown Interface Panel. Small RF- Socket- RF input, large RF - Socket is for RF output.

PCA Socket is intended for pedal or another external control of the PA. Near it is a main fuse. Two Green terminals are for fan.

73!, UA3AIC

Credit Line: http://www.qsl.net/ua3aic/gu43b.html
