Flat EH- Antenna for 10- MHz



It was a lots deal to do at that day (when I made the antenna), so at last I just measured the antenna parameters but not tested the antenna in the Air. Figure 6 shows the parameters of the EH- Antenna. The antenna has band- pass in 930-kHz (at SWR less the 2).



Near the antenna was installed RF- Choke- several turns of coaxial cable around of a ferrite ring. The choke is visible on the Figure 5.

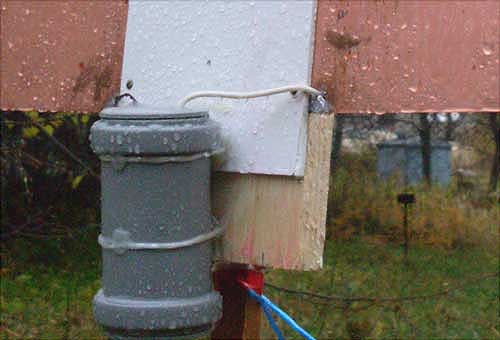

The next day a rain was coming. Water dropped from the antenna and I thought that no chance the antenna alive. Figure 7 shows the antenna into the rain.







Figure 7 Rain and Flat EH- Antenna



I turned on the EH-Antenna instead of my 42- meters wire... Noise (compare to 42-m- LW, the antenna installed from another side of my home) dropped down but stations went up. First QSO was with UA0AV, Sergey, Krasnoyarsk- 599. Next ones- M0IOW, RK4HE, SP3OOC and VK3XQ, Australia, my rapport 539, I heard him 56/79. May be good propagation... anyway, for small EH-Antenna placed at 2- meters above the ground- it is very good. Then I had QSOs with OK1HAJ, RV3QX, SP9FVO, YU5R, GM0IXO, ON3URT, OZ1HVL, UA4SKW, SP4NDV, UT0EG, DR600UL, RA9FFF, UN1L, RA9JAT, RM9WK, ON3WP/qrp, LA9SN, RD3BD, RV3SBS

So, I decided do not remove the EH- Antenna and tested it in next days. For me it was interesting how the antenna would be worked at show conditions.



.

73!

Vladimir, UA1ACO

St. Petersburg, October- 2009
