ANTENTOP- 01- 2010, # 012

Flat EH- Antenna for 10- MHz





Vladimir Kononov, UA1ACO, St.-Petersburg



Credit Line: http://ehant.qrz.ru/exp_eh31.htm



Some days I heard 10- MHz. Good propagation conditions, lots stations but no antenna. Only 42- meters length of wire was connected to my ICOM-7000 through ICOM AT-180. So, I decided to make EH-Antenna for the band. To avoid too much job with cylinders (that are commonly used at EH- Antenna) I made a Flat EH- Antenna from stuff from my scrap- box. It takes only 3- 4 hours for making and tuning of the antenna.



I made the antenna like an experimental for short time work. But the antenna showed so good performance that I leave it for my every- day work in the Air. Figure 1 shows the Flat EH- Antenna.







Vladimir Kononov, UA1ACO

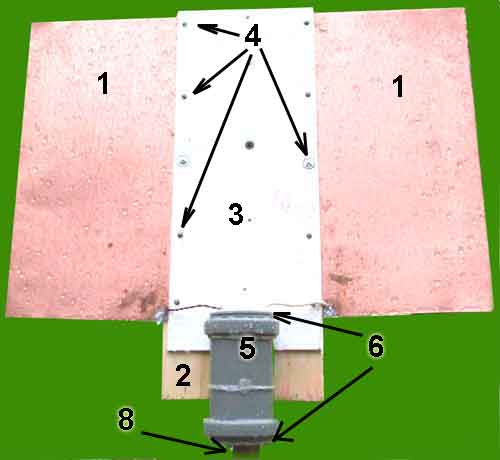

Figure 1 Flat EH- Antenna for 10- MHz
