ANTENTOP- 01- 2009, # 011

Small Sized Helical Antennas





Table 2 shows data at testing the Helical Antenna compare to a Traveling-Wave Antenna.







Note I.G.: At the article there is not explained what the Traveling-Wave Antenna is.

At the article there is not explained what a Helical Antenna and at which band was tested.







Figure 3

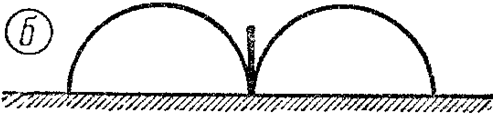

B. DD of the Vertical Small Sized Helical Antenna on a square rod



Table 1







Numbers of turns for band:



20- m

40- m

80- m

160- m



Antenna from Fig. 1



90



180



360



720



Antenna from Fig. 2



90



180



360



720



Antenna from Fig. 3



200



400



800



1600



Note: For antenna Fig.2 the Data given for one part of the dipole





Table 2



Date

Time, msk

City,

Callsign

RST

Of the correspondent



RST for UA0RW when is used:

Traveling-Wave Antenna



Helical Antenna

22-V-1957

16-45

Sarapul, UA4WA

579

579

579

25-V-1957

16-00

Khabarovsk,

UA0CJ

589

579

599

25-V-1957

18-30

Leningrad,

UA1KAS

579

579

589

25-V-1957

21-15

Kaliningrad,

UA2KAA

579

579

579

26-V-1957

14-00

Irkutsk,

UA0SL

5(6/7)9

579

5(8/9)9

26-V-1957

14-45

Stalinabad,

UJ8KAA

559

449

559

26-V-1957

16-00

579 Penza,

UA4FC

579

569

579
