ANTENTOP- 01- 2008, # 010

Water Pipe T-Joint at VHF Antennas

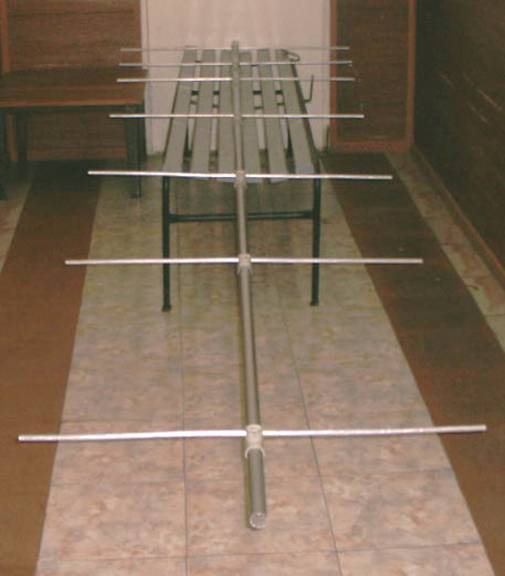

Picture 5

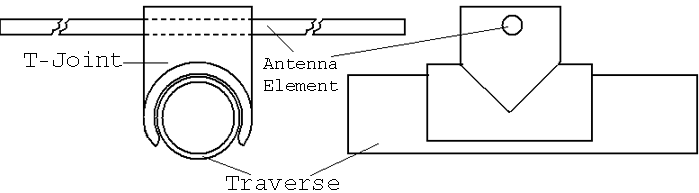

T-joint may be used for fast assembling of field VHF antennas. It needs drilled hole for traverse on to 1-1.5 mm less then the OD of the traverse. Then partially cut T- joint toward to side tap. Do smooth the cut sides with the help of a file, See Figure 1.

So, it is possible to put the rework T- joint with antenna element on to traverse, then push the T- joint and snap it onto the traverse. If it is need you may fastened the reworking T- joint with help of a clamp.

73 de UA9XBI!













Figure 1
