ANTENTOP- 01- 2008, # 010

Rectangular UB5UG



Figure 3 shows input impedance for

rectangular for the 40-meters Band. Figure 4

shows SWR for rectangular for the 40-meters

Band. Figure 5 shows vertical and horizon

patterns. All diagrams made by MMANA for

the Rectangular designed for 7.050-MHz,

placed at height of the 2 –meters above the

real ground, vertical parts of the antenna

–aluminum  tube in diameter 10- mm (000-

AWG), horizon wires- aluminum wire in

diameter of 1-mm (18-AWG).

MMANA file for the antenna made by UR0GT.



 It is possible to design directional antennas

on the base of the Rectangular. Reflector and

director may be designed on the base of the

rectangular. Such directional antennas may

be designed for all amateurs HF bands.

Parameters of Three- Elements Antenna made

on the base of the Rectangular elements are

almost equal to parameters of a Four

Elements Antenna made on the base of linear

wires (YAGI).

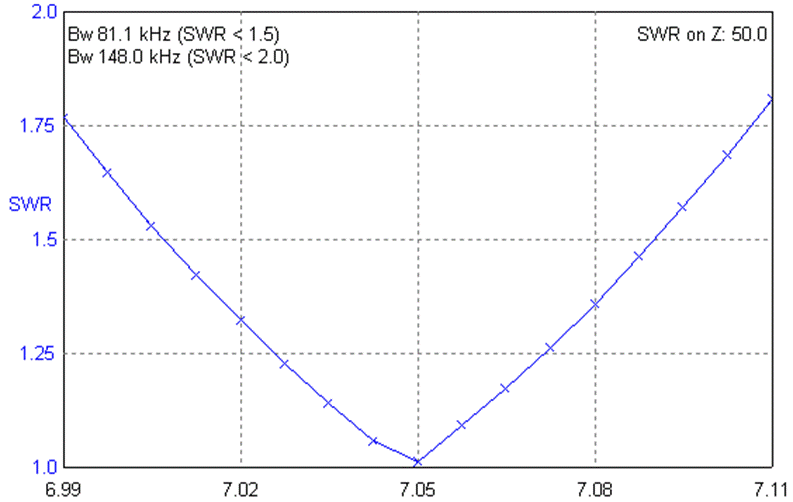

Figure 4 SWR for Rectangular for 40-meters

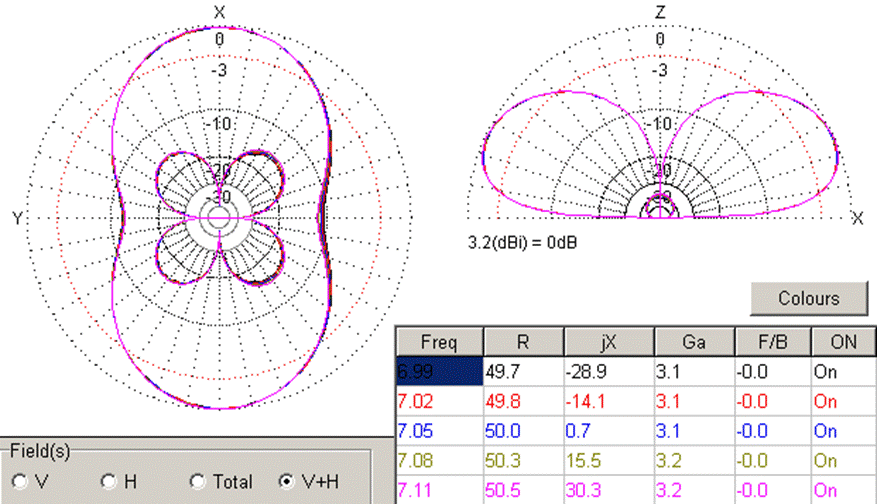

Figure 5 Vertical and horizon patterns for Rectangular for 40-meters





http://www.antentop.org/

Page 32
