Field Antenna for the 40- meters

Custom Search



ANTENTOP- 01- 2006, # 008

Field Antenna for the 40- meters



Table 1



Frequency, MHz

L1, meters

L2,

meters

C, pF

14.15

1.8

3.8

314

7.07

4.4

8.4

115

3.67

6.6

17.8

287

For example, I put the capacitor into an empty film box. May be at antenna tuning you need change the length (in + or - ) of the L2. Counterpoises are laid on the ground. Overall weight of the antenna with its



mast (was used a telescopic plastic fishing rod) is a little more the 1000 gram (2.2 pound).

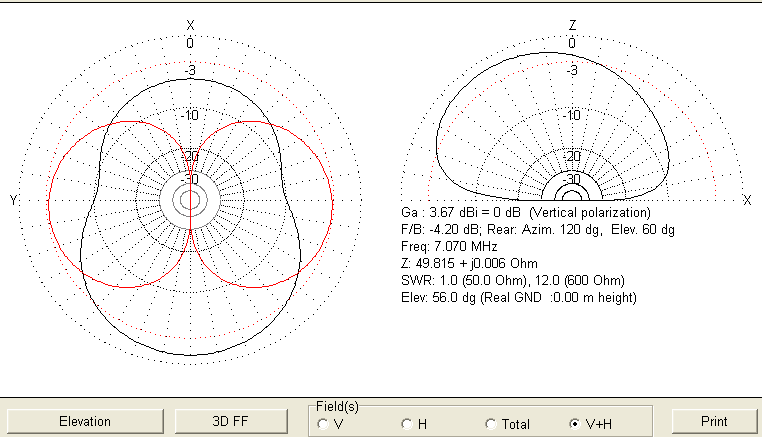

Figure 2 shows a diagram directivity with antenna data provided by free antenna simulator MMANA

Figure 2

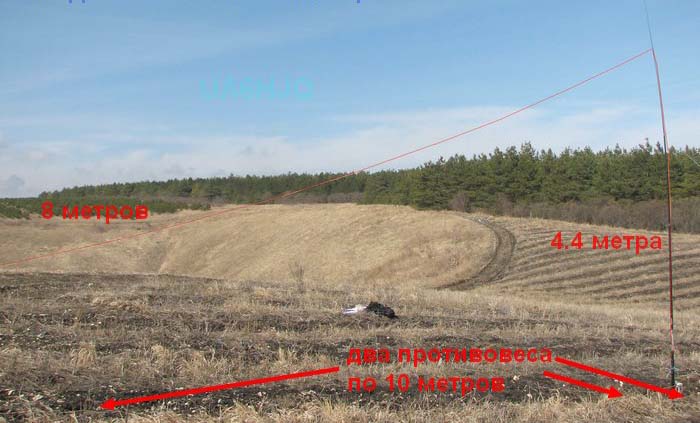

Figure 3 shows the antenna installed in Caucasus

Mountains







Figure 4

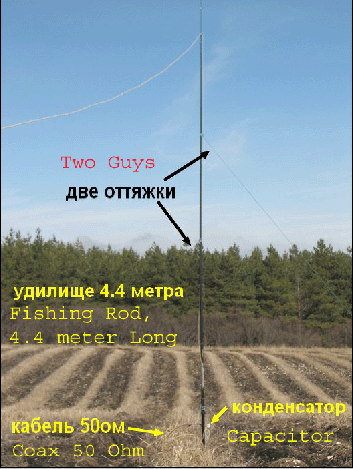

 shows the mast of the antenna
