Shunt Vertical Universal HF Antenna


Shunt Vertical Universal HF Antenna at 15-m

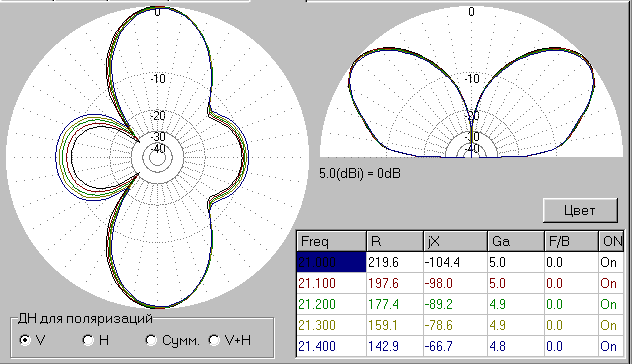

Vertical Radiation Pattern

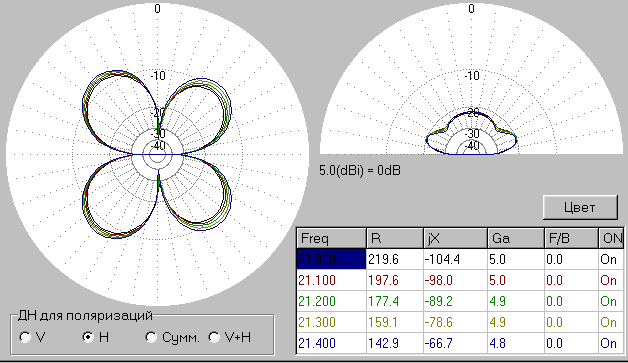

Horizon Radiation Pattern





Comments: Antenna has strong vertical radiation. A good pattern in the vertical plane. Antenna has almost egg shape pattern dropped to four lobes in horizontal plane, so, it demands to choose a proper direction before an installation of the antenna. Antenna provides DX QSOs. Antenna has Z= 177- j89-Ohms at 21200-kHz. Any ATU does good matching for such load.
