Collinear Antenna for 432- MHz Band

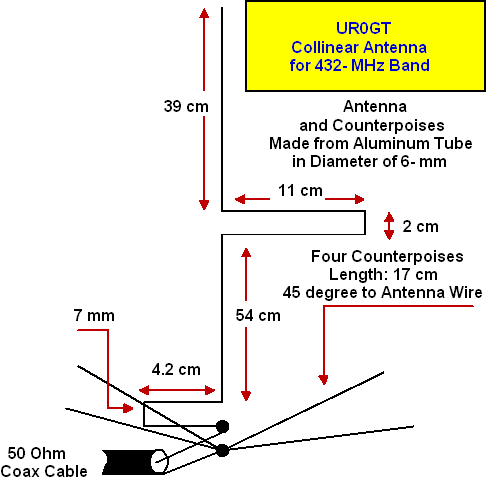

Collinear Antenna for 432- MHz Band: By: Nikolay Kudryavchenko, UR0GT

The simple collinear antenna may be made from a length of aluminum tube, copper tube or just a thick wire. You need a 130- cm length for antenna and 70 cm length for four counterpoises. Despite of simplicity of the design the antenna has very good parameters...



PDF file, 173 KB (ANTENTOP-01-2021, pp.:72- 73)

Download PDF File!

MMANA File for the Collinear Antenna for 432- MHz Band

HTML Version



Contents for AntenTop 01- 2021





Collinear Antenna for 432- MHz Band
