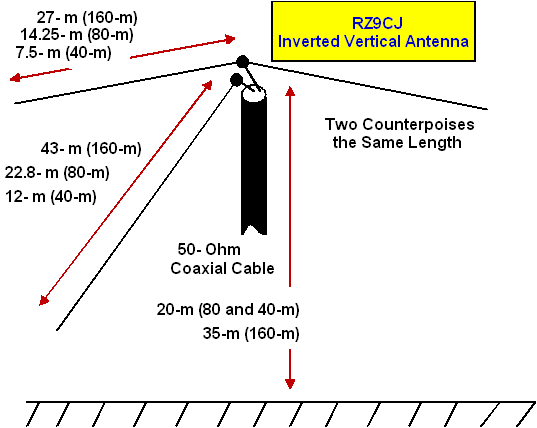

RZ9CJ Three Inverted Vertical Antennas for the 160, 80, and 40- meter Band

RZ9CJ Three Inverted Vertical Antennas for the 160, 80, and 40- meter Band: by: Sergey Popov, RZ9CJ

Simple and effective antenna for 160, 80 and 40- meter Band may be realized as an Inverted Vertical. Inverted Vertical is differed from widely spread Inverted Dipole just an additional wire. However the antenna is most efficiently compare to the usual IV antenna...
.

PDF file, 550 KB (ANTENTOP-01-2021, pp.:23- 25)

Download PDF File!

MMANA FILE for Inverted Vertical Antenna for the 160 Band

MMANA FILE for Inverted Vertical Antenna for the 80 Band

MMANA FILE for Inverted Vertical Antenna for the 40 Band

HTML Version



Contents for AntenTop 01- 2021





RZ9CJ Inverted Vertical Antenna for the 160, 80 and 40- meter Band
