Low Height Antenna for the 160- meter Band

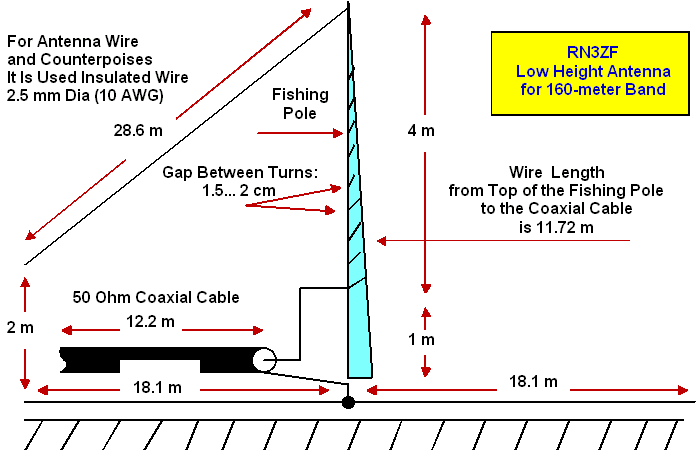

Low Height Antenna for the 160- meter Band: by: Konstantin Enin, RN3ZF

I made the antenna for operation at the field. The antenna is very easy to build and shows high efficiency. My friends were amusing when they have known what kind of antenna I used to...
.

PDF file, 110 KB (ANTENTOP-01-2020, p.:51)

Download PDF File!



HTML Version



Contents for AntenTop 01- 2020





Low Height Antenna for the 160- meter Band
