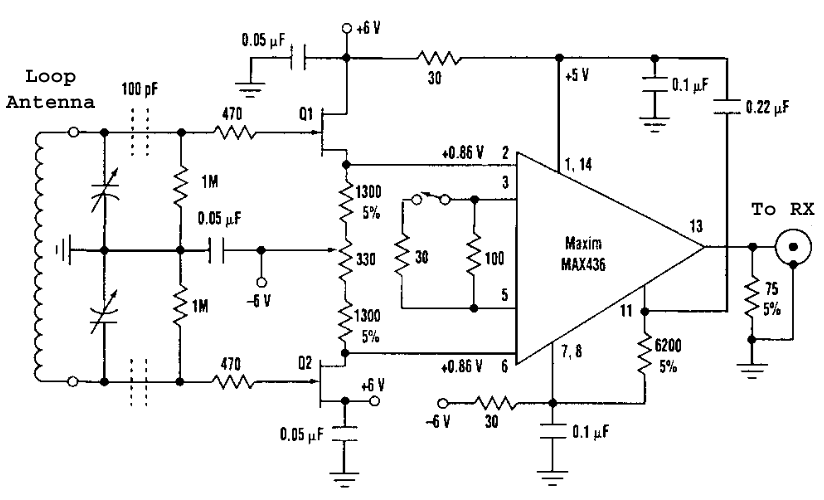

Active Loop Receiving Antenna
|
|
|
|
|
|
Active loop antenna can provide good reception
in harsh environment. The antenna consists of from a loop connected
to RF amplifier. Loop allows provide selection to direction and
RF amplifier boosts the receiving signal. Dimension of the loop
depends on receiving range. |
Variable capacitor
to tune the loop in the resonance may be used in 10- 350- pF.
Switch allows choose the gain- 8- dB or 20- dB. Active loop antenna
intended for 75- Ohm RX input. The output may be connected to
the receiver with help of 75- Ohm coaxial cable. |
|
|
|
|
Credit Line: https://www.qrz.ru/schemes/detail/8106.html |
|
|
|
