ANTENTOP- 01- 2019, # 023

UR0GT V- Antenna for the 145- MHz



UR0GT V- Antenna for the 145- MHz

The publication is devoted to the memory UR0GT.



Credit Line: Forum from:

www.cqham.ru

By: Nikolay Kudryavchenko, UR0GT









It is very simple antenna that has very high gain. The antenna has 50- Ohm input impedance.

Stub may match feeder with antenna. Instead of the stub it is possible to use an usual inductor.



Design of the V- Antenna for the 145- MHz is shown in Figure 1.

Figure 2 shows Z of the UR0GT V- Antenna for the 145- MHz. Figure 3 shows SWR of the UR0GT V- Antenna for the 145- MHz. Figure 4 shows DD of the UR0GT V- Antenna for the 145- MHz.



73! De UR0GT

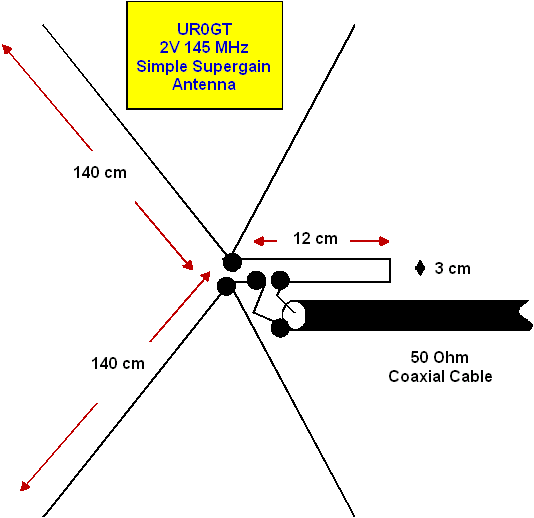

Figure 1 Design of UR0GT V- Antenna for the 145- MHz



The MMANA model of the UR0GT V- Antenna for the 145- MHz may be loaded: http: // www.antentop.org/023/145_UR0GT_023.htm
