Folded Beverage Antenna

Several words about design of the antenna

Transformer of the antenna: Transformer 50/450-Ohm is the same as described at: http://www.antentop.org/020html/020_p27.htm

Grounding: Grounding is very important part of the Beverage Antenna. I made both sides grounding from copper tube in diameter of half inch and 6 feet length. Figure 2 shows design of the grounding. The pipe was bent in shape Z.

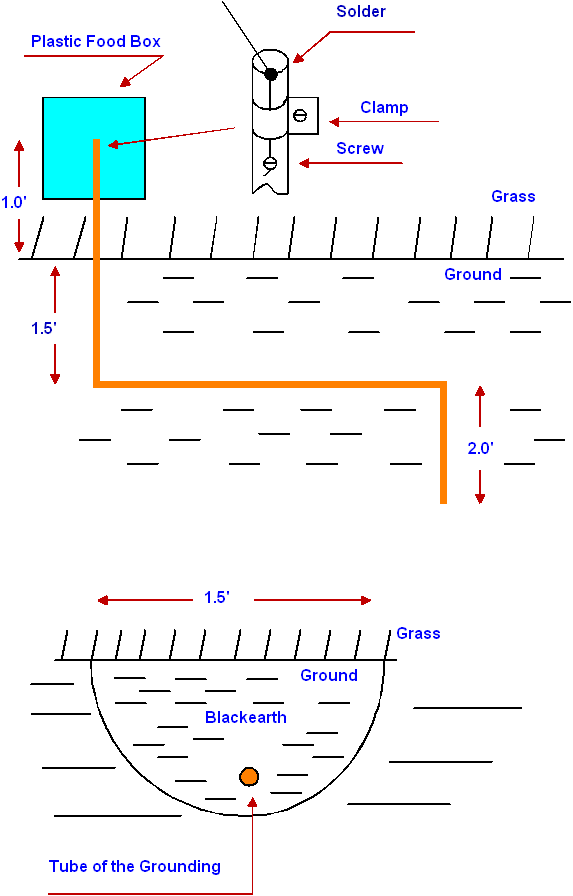

Figure 2 Grounding of the Folded Beverage Antenna
