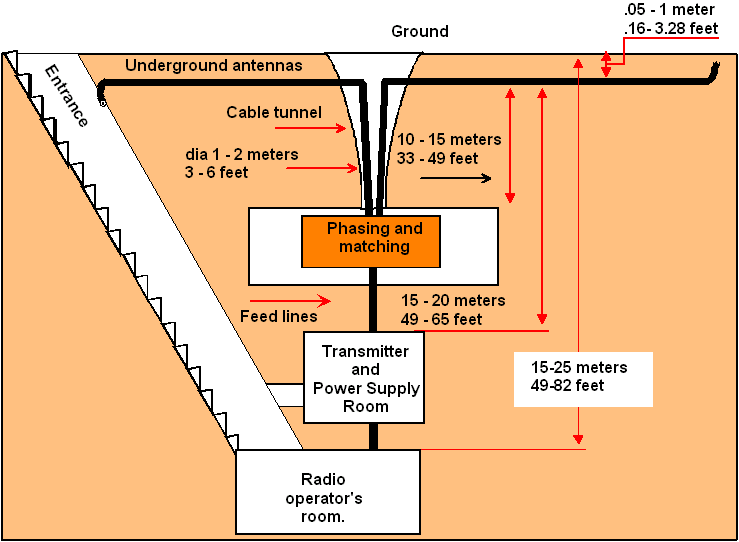

Figure 13 shows underground Long
                Wave Transmitting Site. Antennas of the radio site are installed
                in the depth of 0.5-1 meter. Antennas may just lay in special
                kind of the ground or installed in center of plastic tubes in
                diameter near 1 foot. Feed lines from the antennas go through
                cable tunnel to Phasing and Matching Room. In the room there are
                installed matching devices for matching the antennas with transmitters
                and Phasing devices for creating desired radiation diagram.

              Room with transmitters is located
                just below the room with phasing and matching devices. The operations
                control room and life-support systems are installed below or at
                the same level with the room where transmitters are installed.
                The Underground Long Wave Transmitting Site may get electricity
                through underground power electric cable or feed from diesel or
                nuclear power electric generator.

              Some Experiments with
                Spreading Antenna

              I tested a spreading antenna
                having 80 meter length that was lying on the ground.
             |

               Spreading antenna was made
                from old 75- Ohm coaxial cable with removed outer metal braid.
                Antenna had three counterpoises in 40, 20 and 10 meter length.
                Antenna fed through transformer 1 to 4 (75/300 Ohm). Monitoring
                Beverage antenna was installed at 20 meters apart of the spreading
                antenna. I used home- made transceiver with separate attenuator.
                Attenuator was savaged from an old RF Generator. Antennas were
                reconnected to the attenuator with help of RF Connectors. Figure
                14 shows design of the two antennas and schematic of
                the test.

              A-B test showed that on the
                40, 20 and 10- meter Bands there was difference in receiving mode
                in 2- 6 dB, spreading antenna loose. In transmitting mode correspondents
                gave me 1- 2 balls on scale S for the Beverage antenna over the
                spreading antenna. On the 80 and 160 meter Bands the difference
                between spreading and Beverage antenna in receiving mode was near
                6- 12 dB in favour of the Beverage antenna. In transmitting mode
                correspondents gave me 2- 3 balls on scale S in favour of the
                Beverage antenna.
             |
