Special page devoted to

UR0GT Super- J Antenna for the 438 MHz

UR0GT Super- J Antenna for the 438 MHz: By: Nikolay Kudryavchenko, UR0GT

Super J antenna is very popular on UHF bands. Here it is present two design of the antenna. First design of the antenna has input impedance of 200- Ohm so it is possible match the antenna with 50- Ohm coaxial cable with help of 4:1 transformer. Second design of the antenna has input impedance of 50- Ohm...



PDF file, 280 KB (ANTENTOP-01-2019, pp.: 72- 75)

Download PDF File!

MMANA model of the UR0GT Super- J Antenna for the 438 MHz with 200 Ohm Input Impedance

MMANA model of the UR0GT Super- J Antenna for the 438 MHz with 50 Ohm Input Impedance

HTML Version

Contents for AntenTop 01- 2019

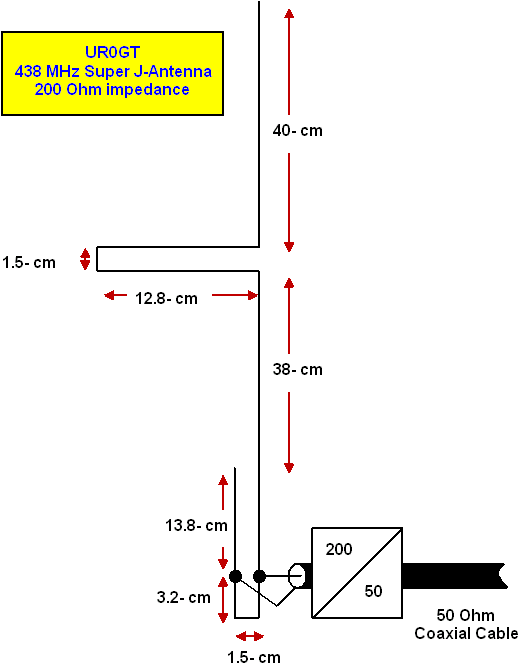

Design of UR0GT Super- J Antenna for the 438 MHz with 200 Ohm Input Impedance
