Two Simple Low Pass Filters for 145 - MHz Band

Custom Search



ANTENTOP- 01- 2018 # 022

Two Simple Low Pass Filters for 145- MHz Band



Inductor 100 nano-H contains 3 turns. ID is 15 mm. Inductor is wound by wire in diameter of 2.5- mm (10 AWG), 10- mm gap between turns.

Inductor 67 nano-H contains 2 turns. ID is 15 mm. Inductor is wound by wire in diameter of 2.5- mm (10 AWG), 7- mm gap between turns.

Inductor 33 nano-H contains 1.2 turns. ID is 15 mm. Inductor is wound by wire in diameter of 2.5- mm (10 AWG), 15- mm gap between turns.



Filter has SWR 1.1:1 at the 2- meter band. Figure 5 shows SWR for the filter at the 2- meter Band. Figure 6 shows return loss of the Low Pass Filter for 145- MHz Band at frequencies 200- 500- MHz. Figure 7 shows attenuation for the Low Pass Filter for 145- MHz Band at the 2- meter Band.





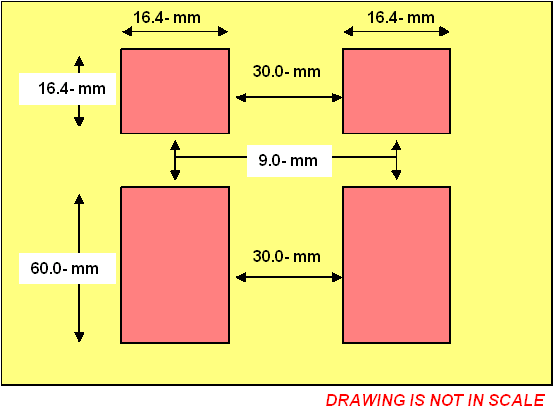

Figure 4 Layout of the PCB capacitors

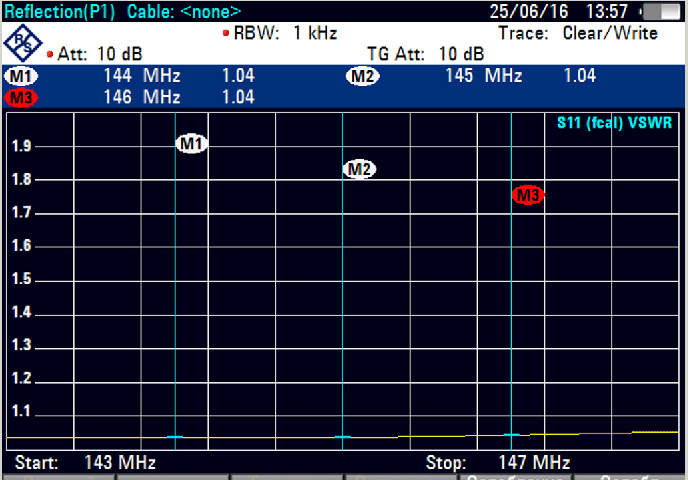

Figure 5 SWR for the Low Pass Filter for 145- MHz Band at the 2- meter Band



www.antentop.org

Page- 75
