Simple Antenna
for the 435- MHz Band The publication is devoted to the memory of UR0GT. |
|
|
|
|
|
Credit Line: Forum from: www.cqham.ru
|
By: Nikolay
Kudryavchenko, UR0GT |
|
The question that usually stands before beginner amateur that makes first
steps on the 435- MHz band is what antenna should be chosen. Antenna
that easy to design has high gain and does not require any tuning.
Design of such antenna is shown on Figure 1. The antenna may be made of wire in diameter 3- 10 mm
(not critical). Antenna has high gain, does not require adjustments
and the parameters are not influenced by
near environment. |
Figure 2 shows Z of the Simple Antenna
for the 435- MHz Band.
Figure 3 shows SWR of the Simple Antenna
for the 435- MHz Band. Figure
4 shows DD of the Simple Antenna
for the 435- MHz Band. 73! Nick, UR0GT |
|
The MMANA model of the Simple Antenna for the 435-
MHz Band may be loaded: http: // www.antentop.org/022/435_ur0gt_022.htm |
|
|

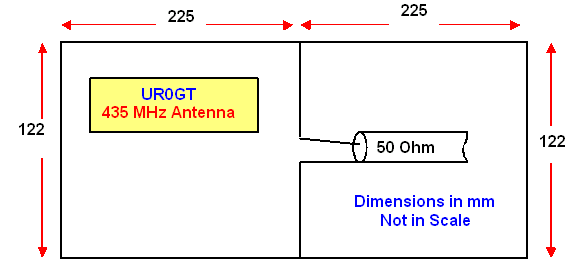

Figure 1 Simple
Antenna for the 435- MHz Band |
|
|
|
|
 |
|
|
|
|
|
|
